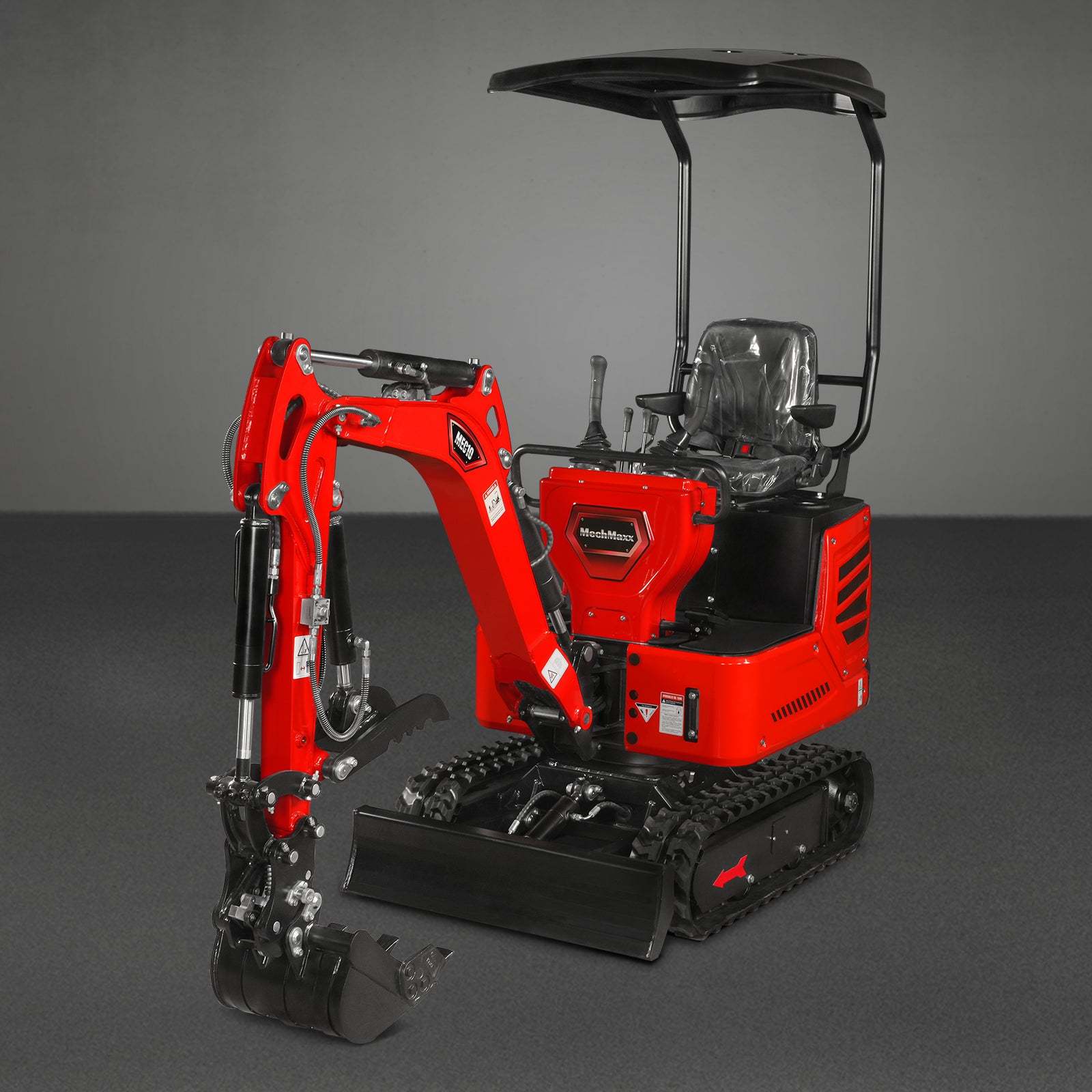

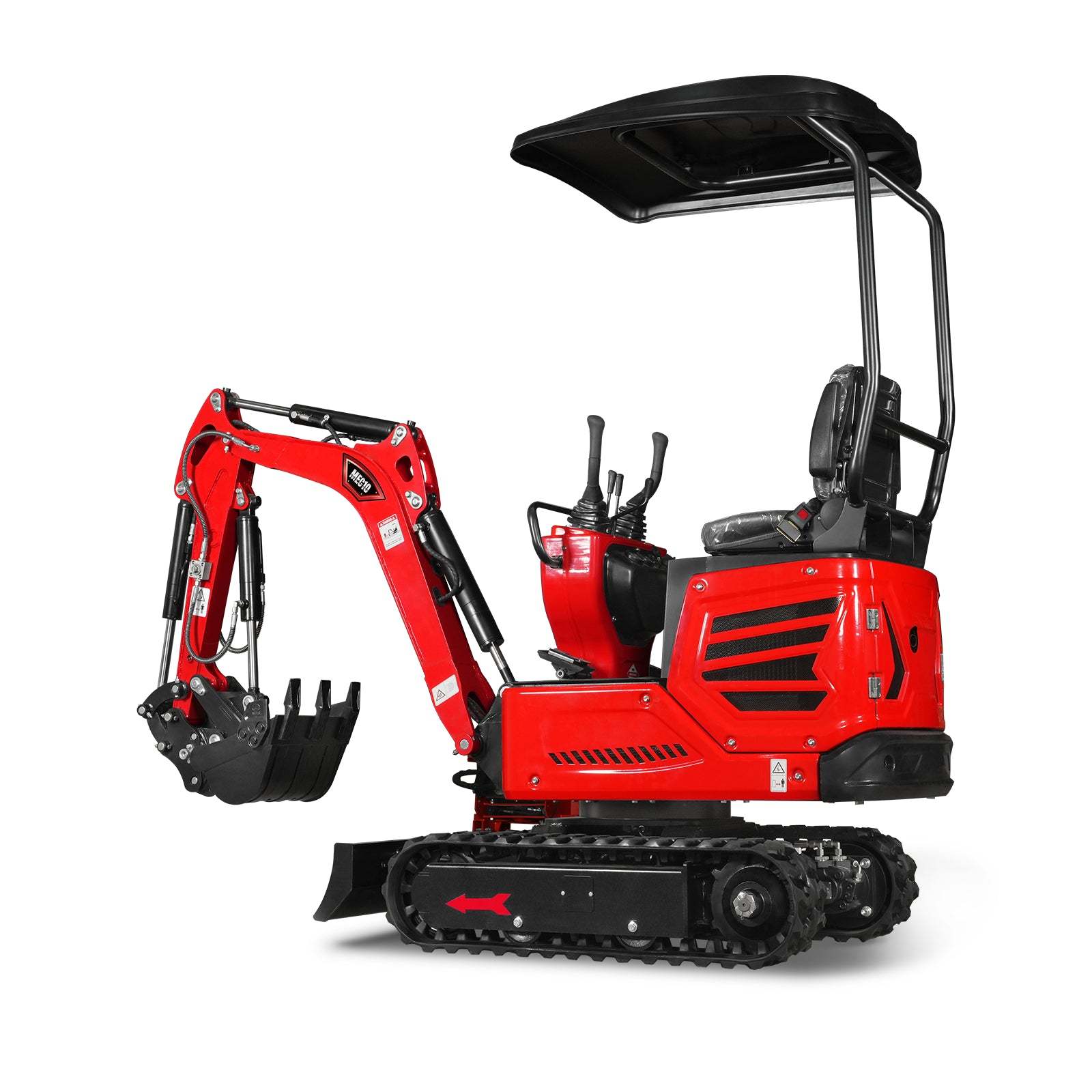

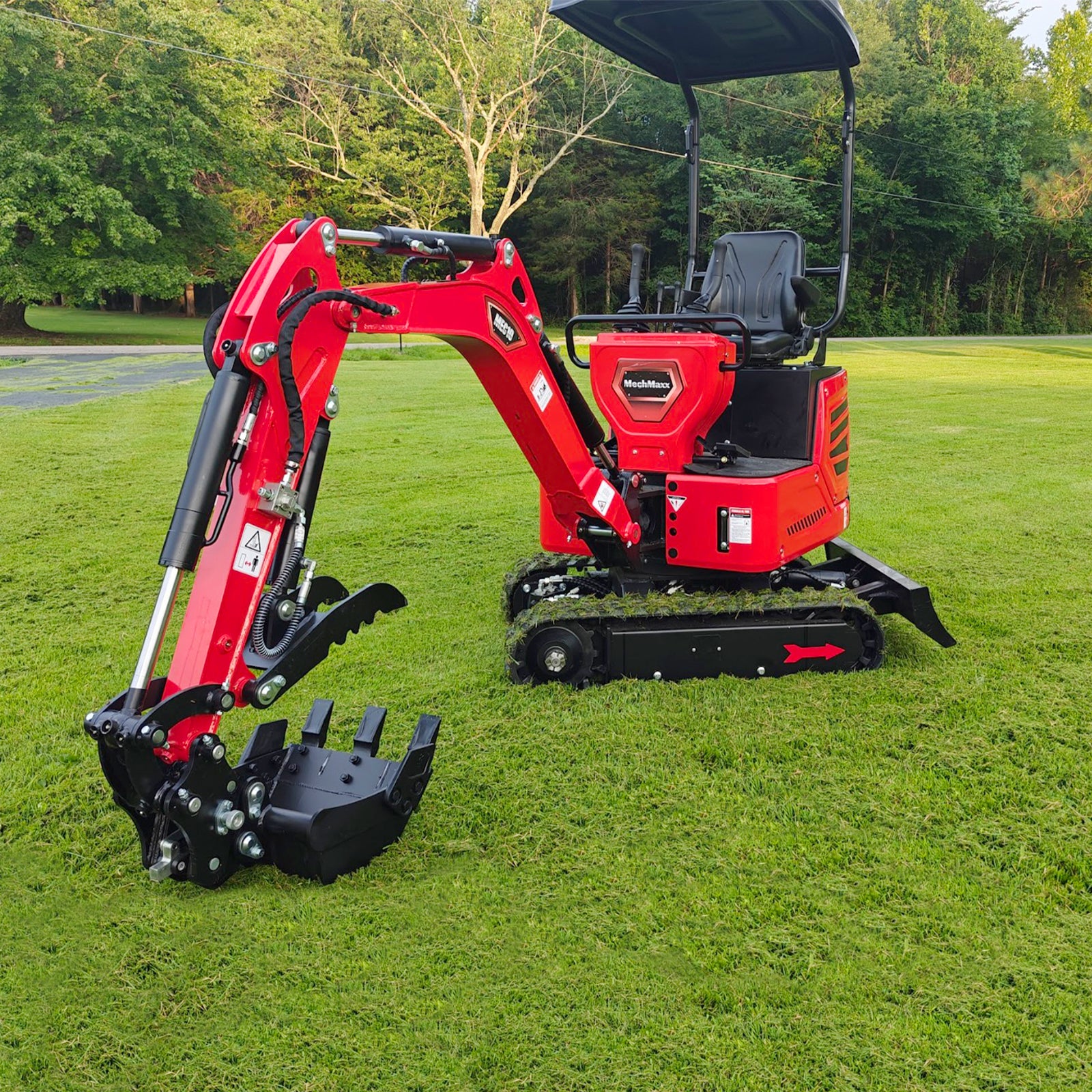

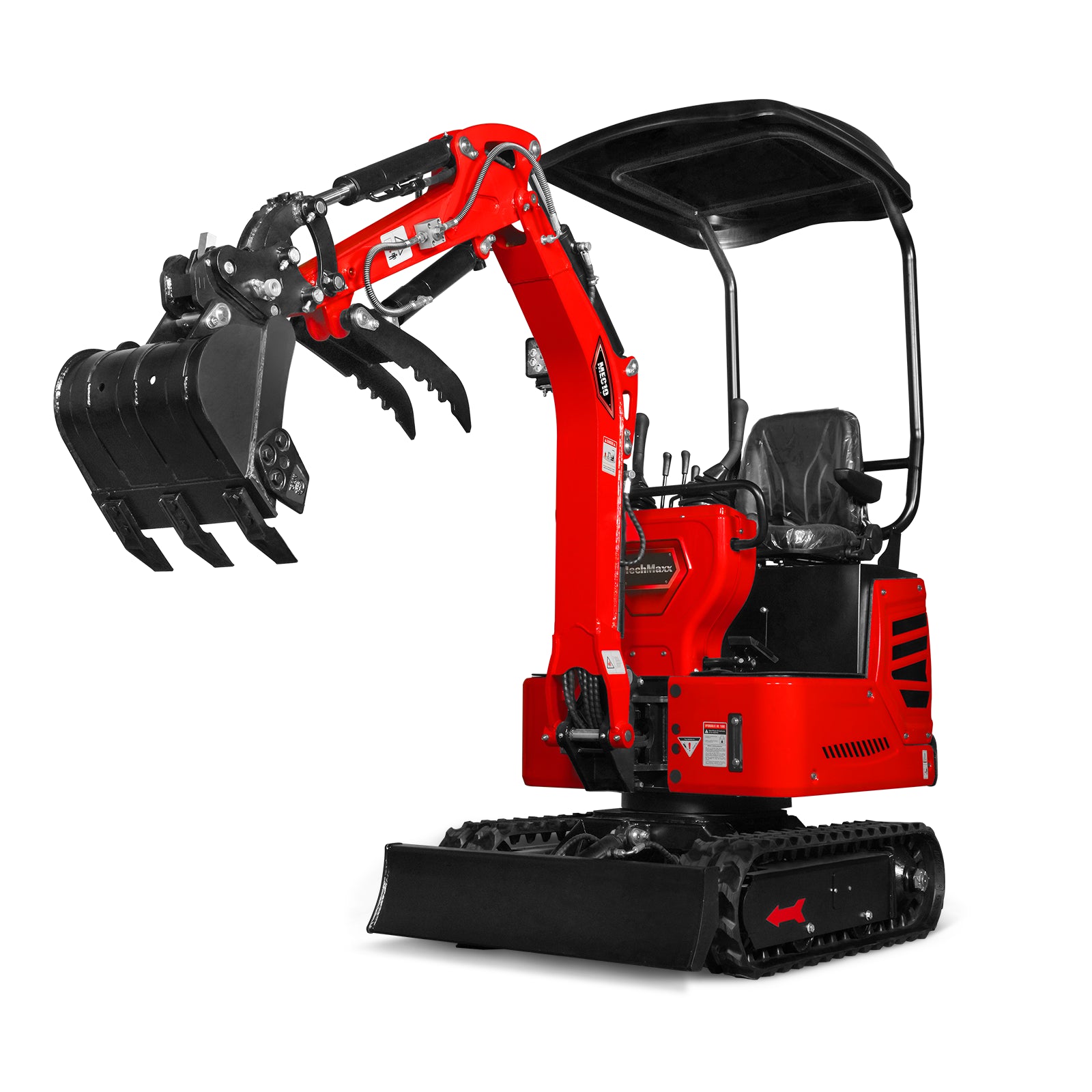

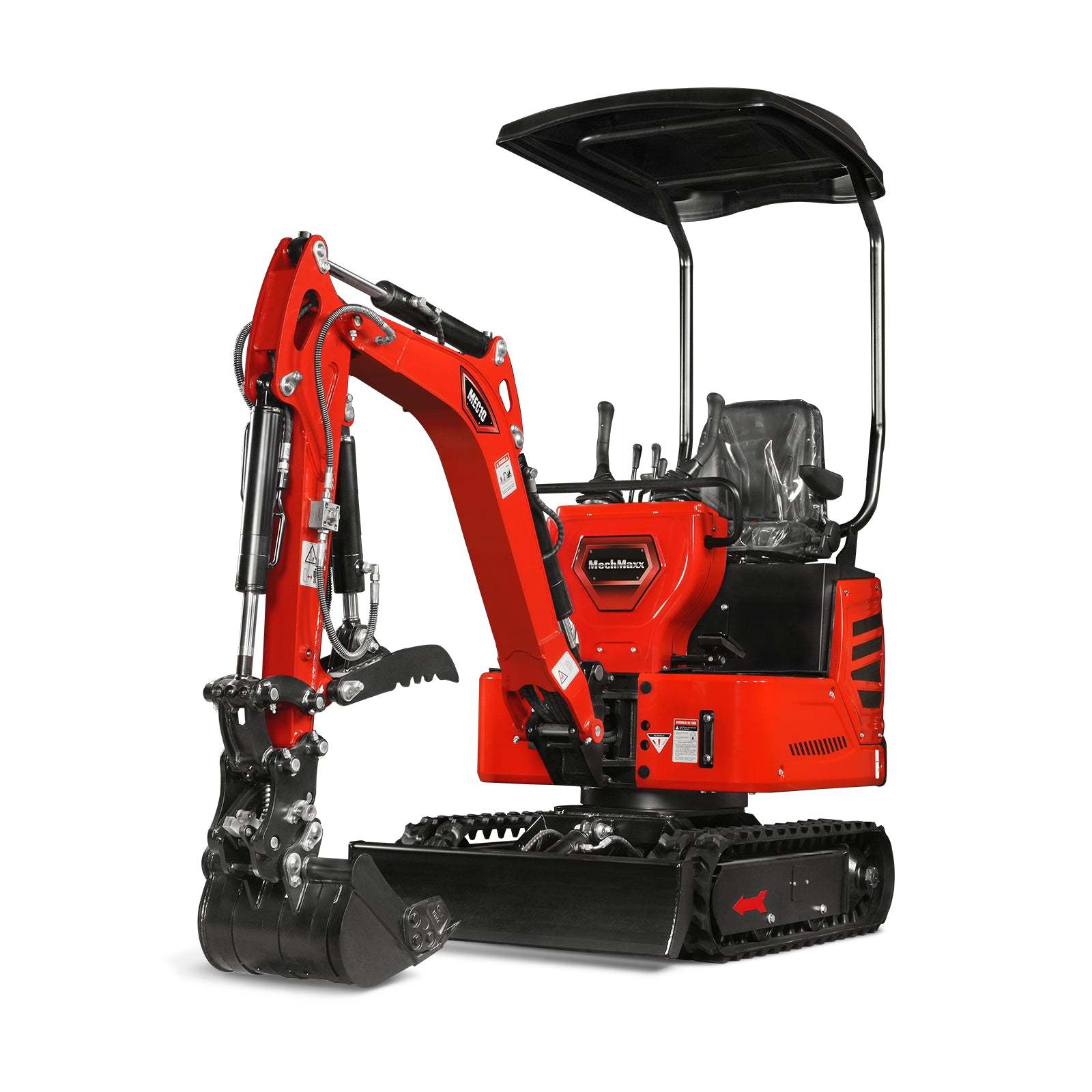

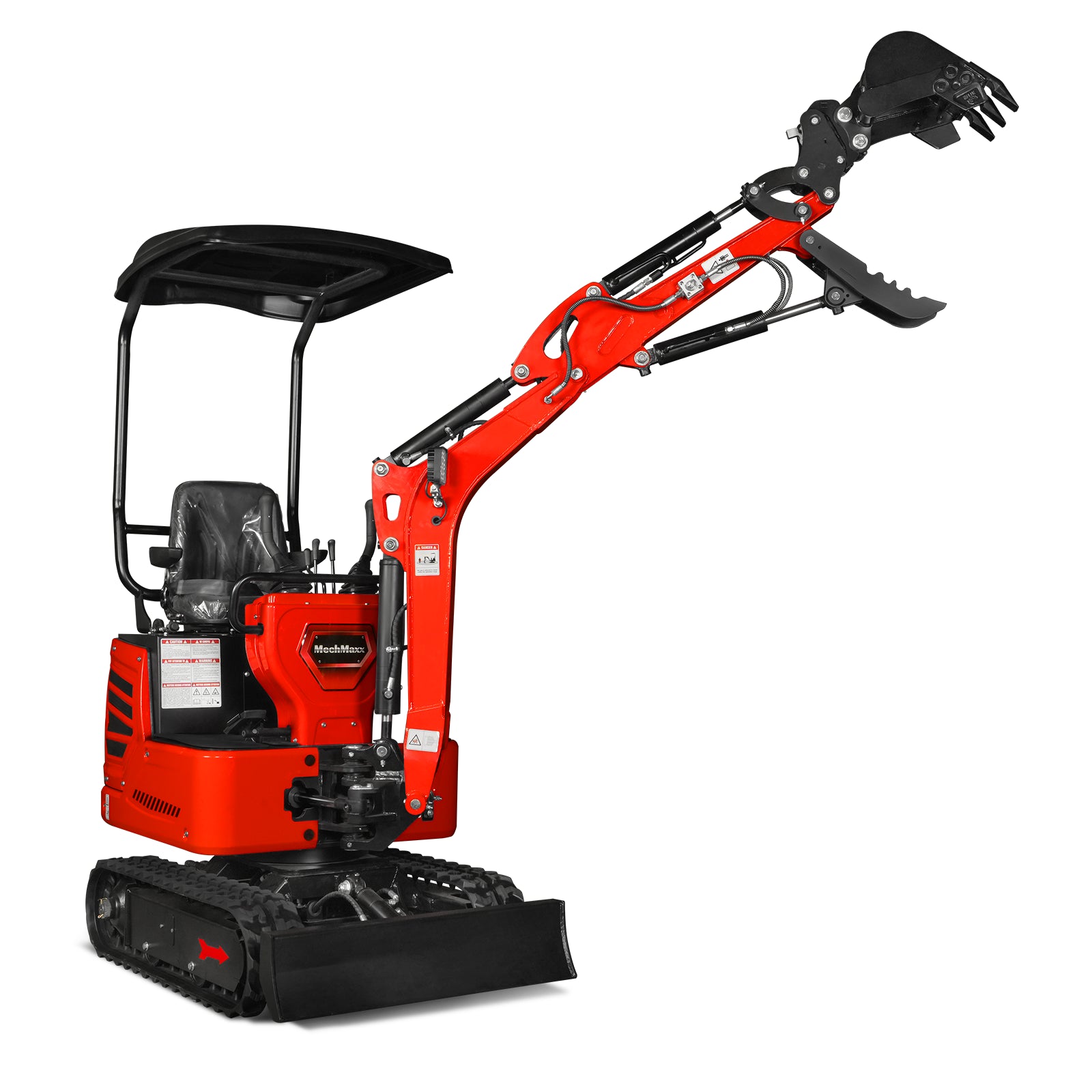

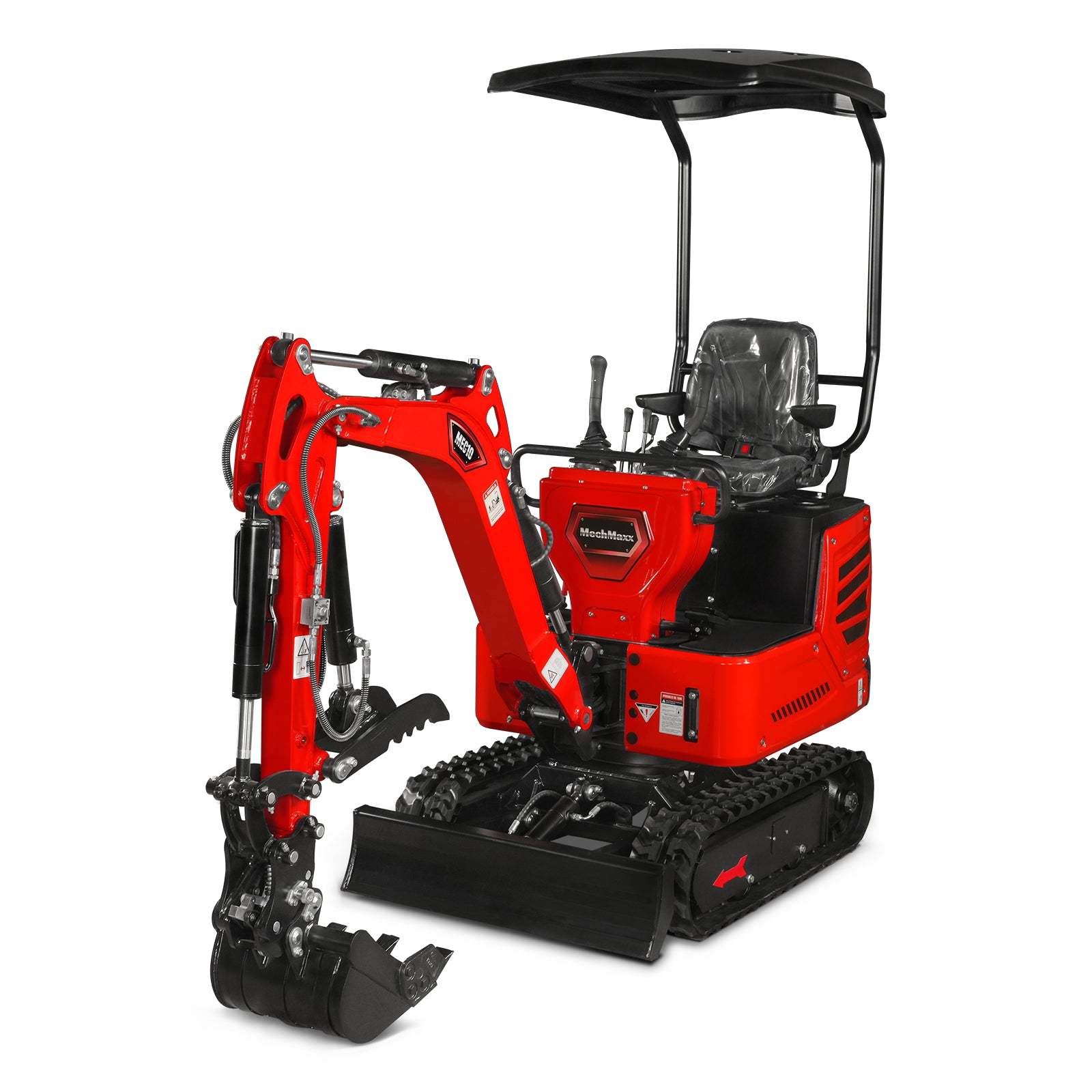

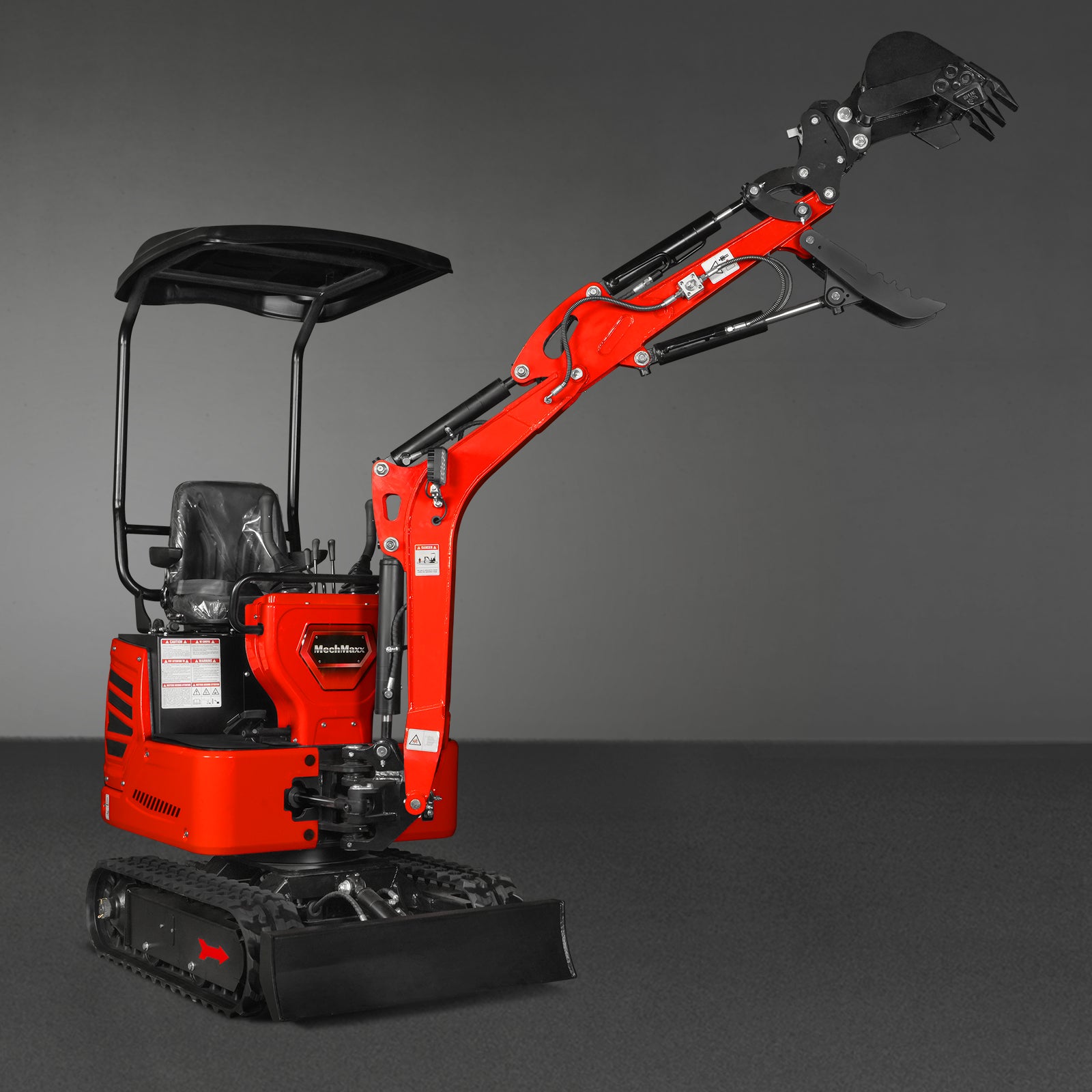

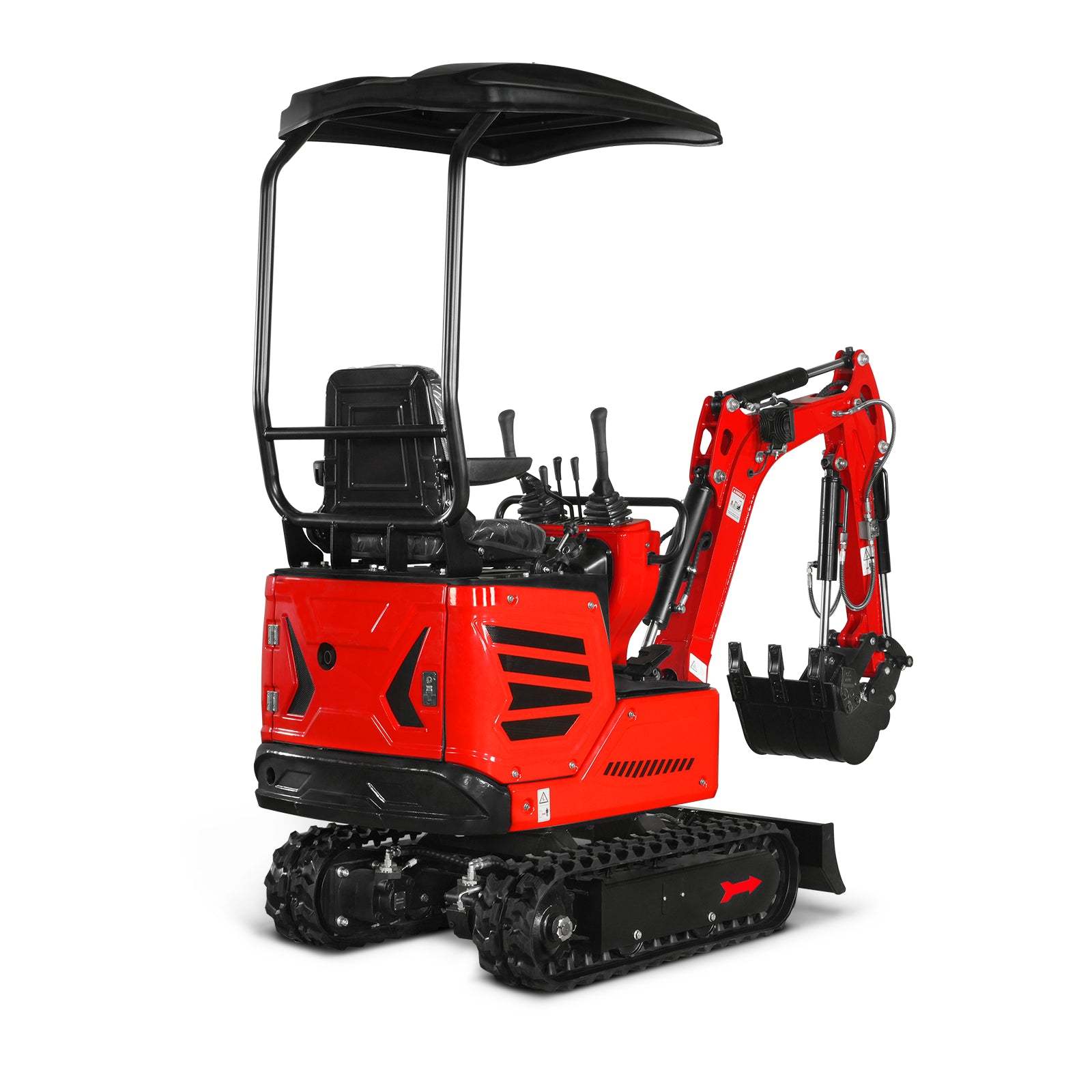

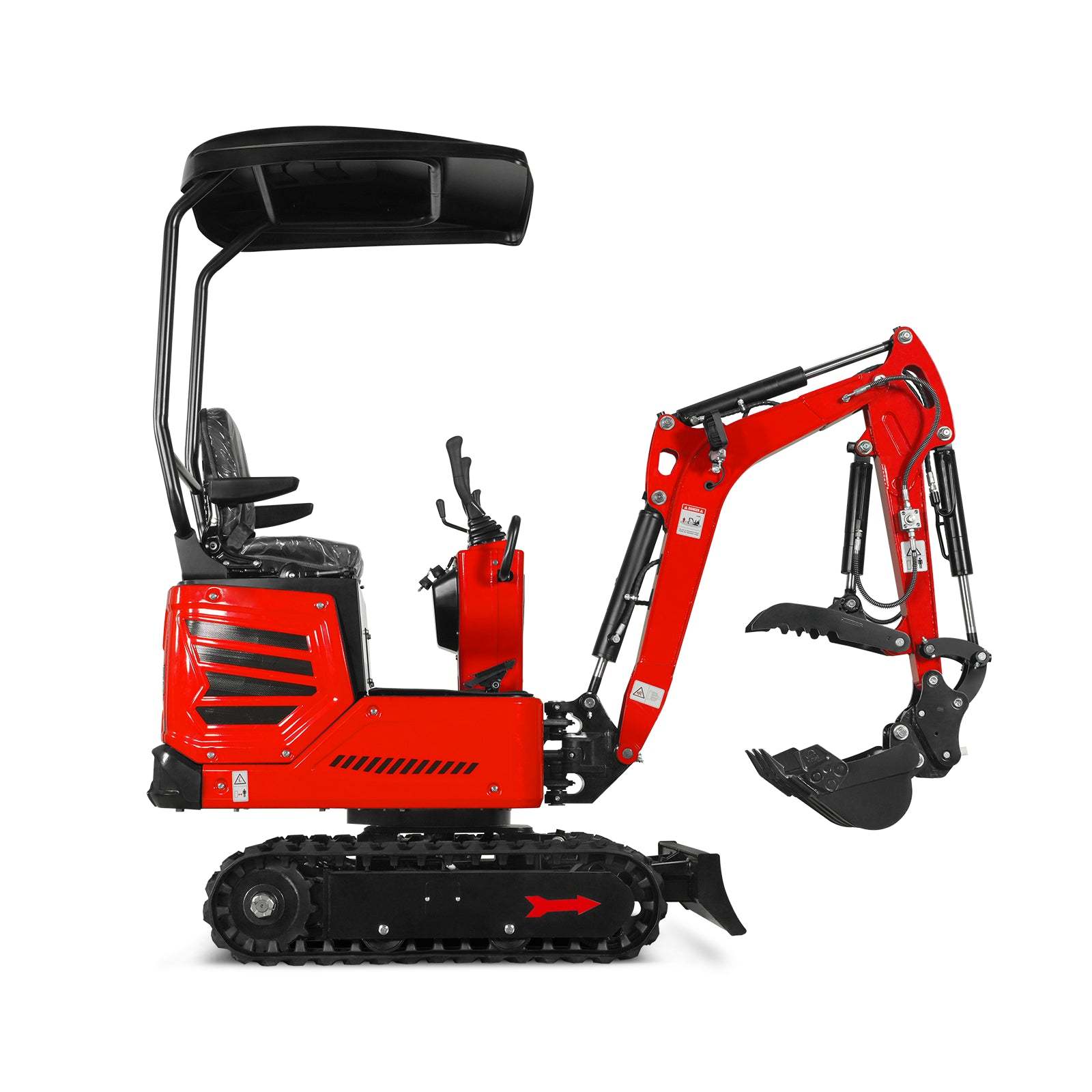

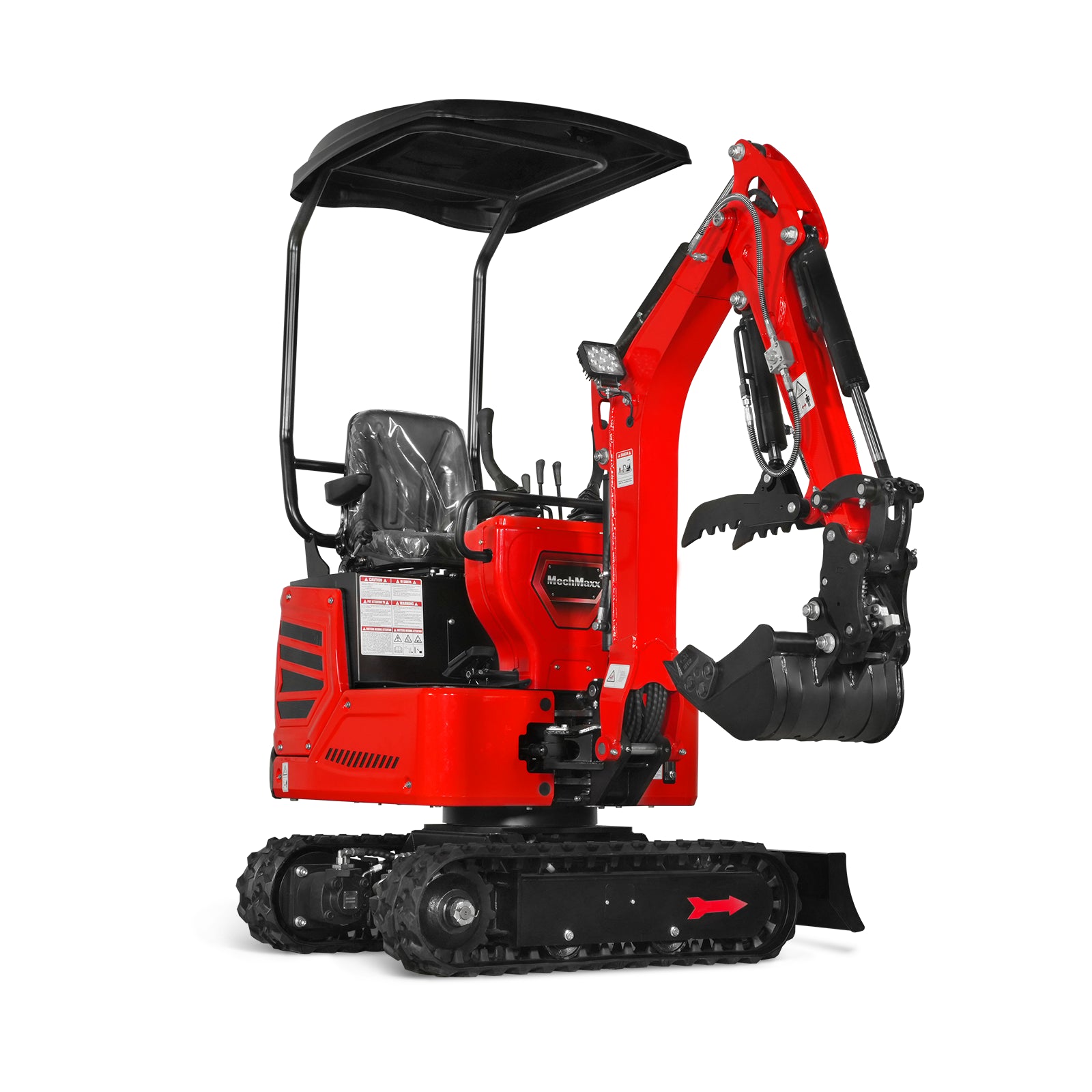

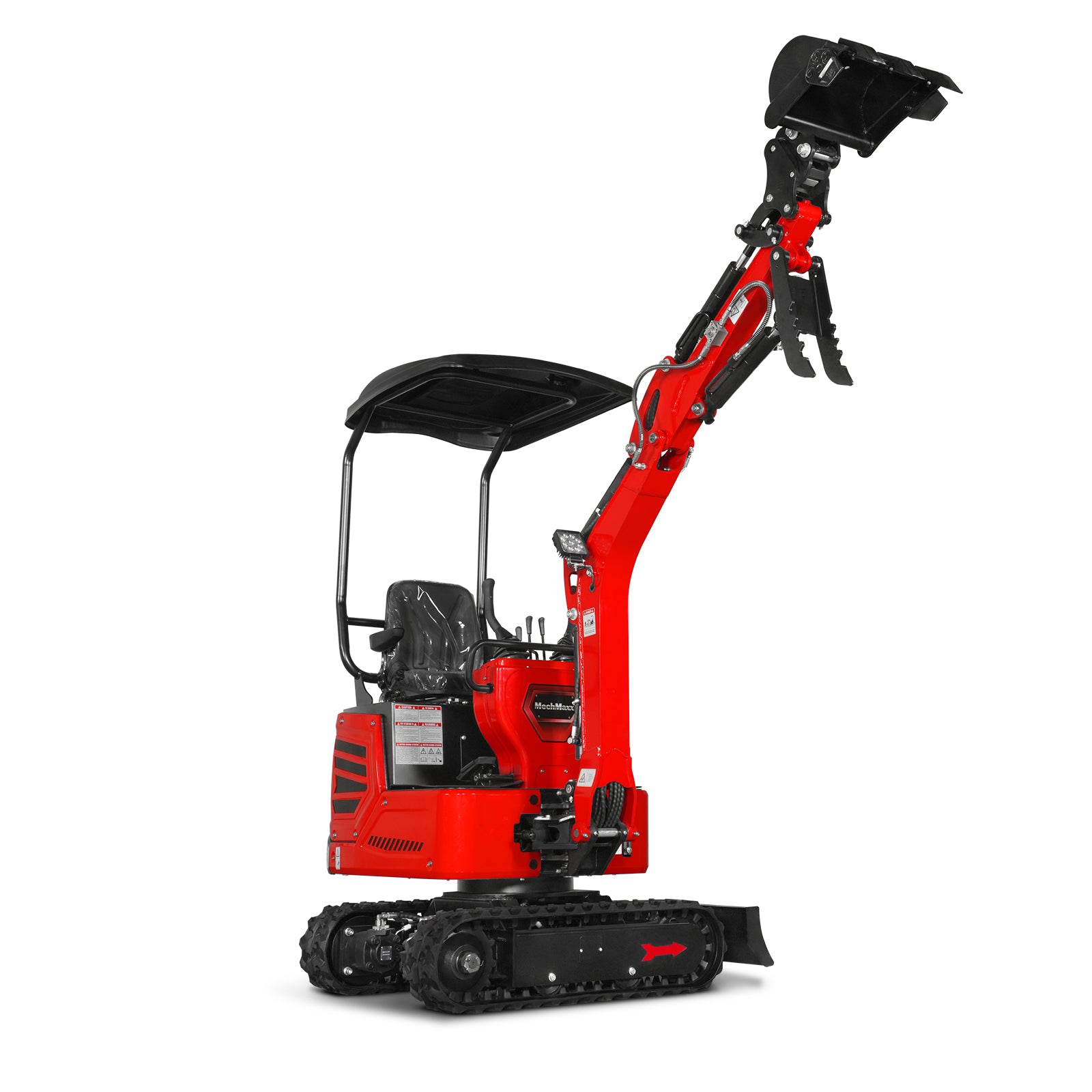

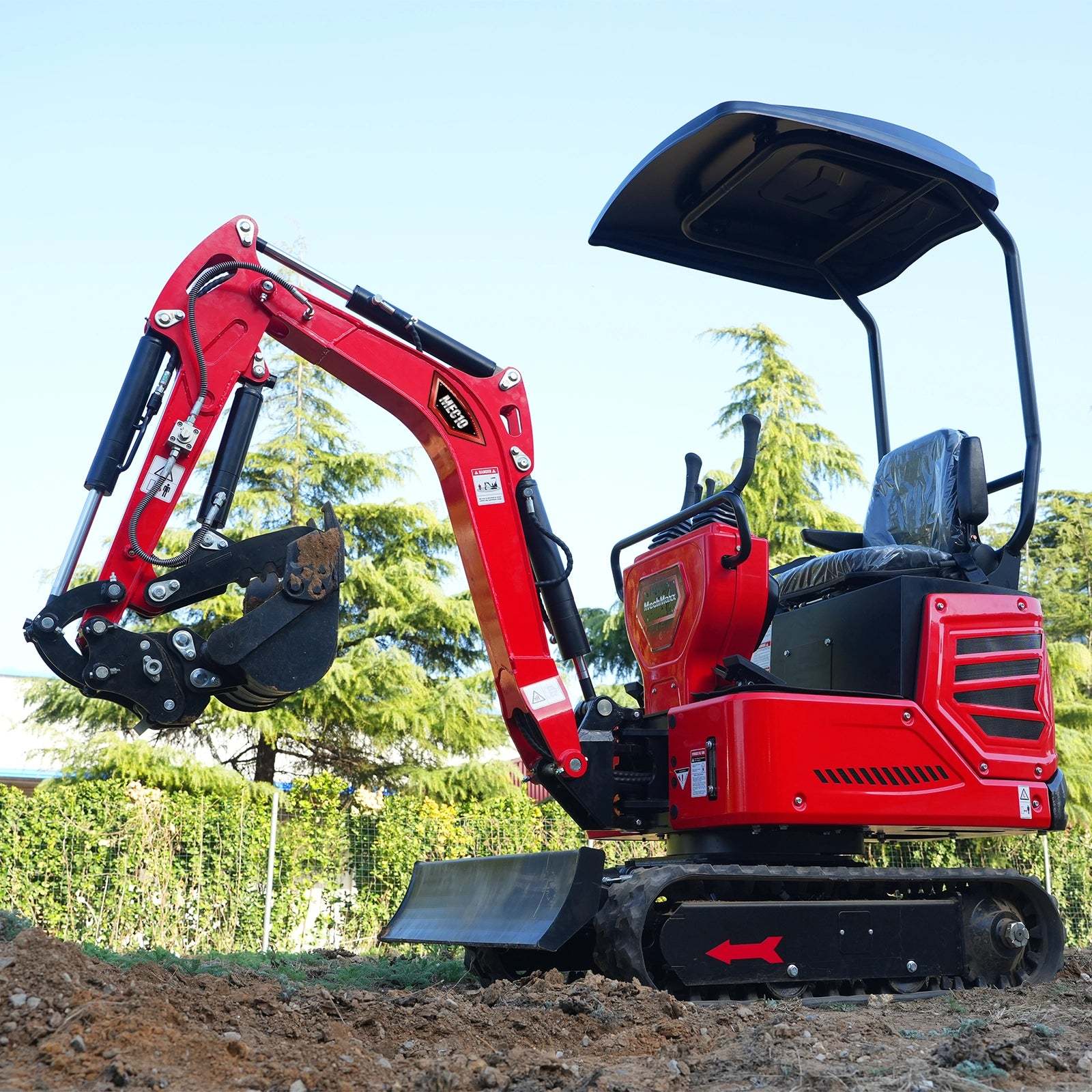

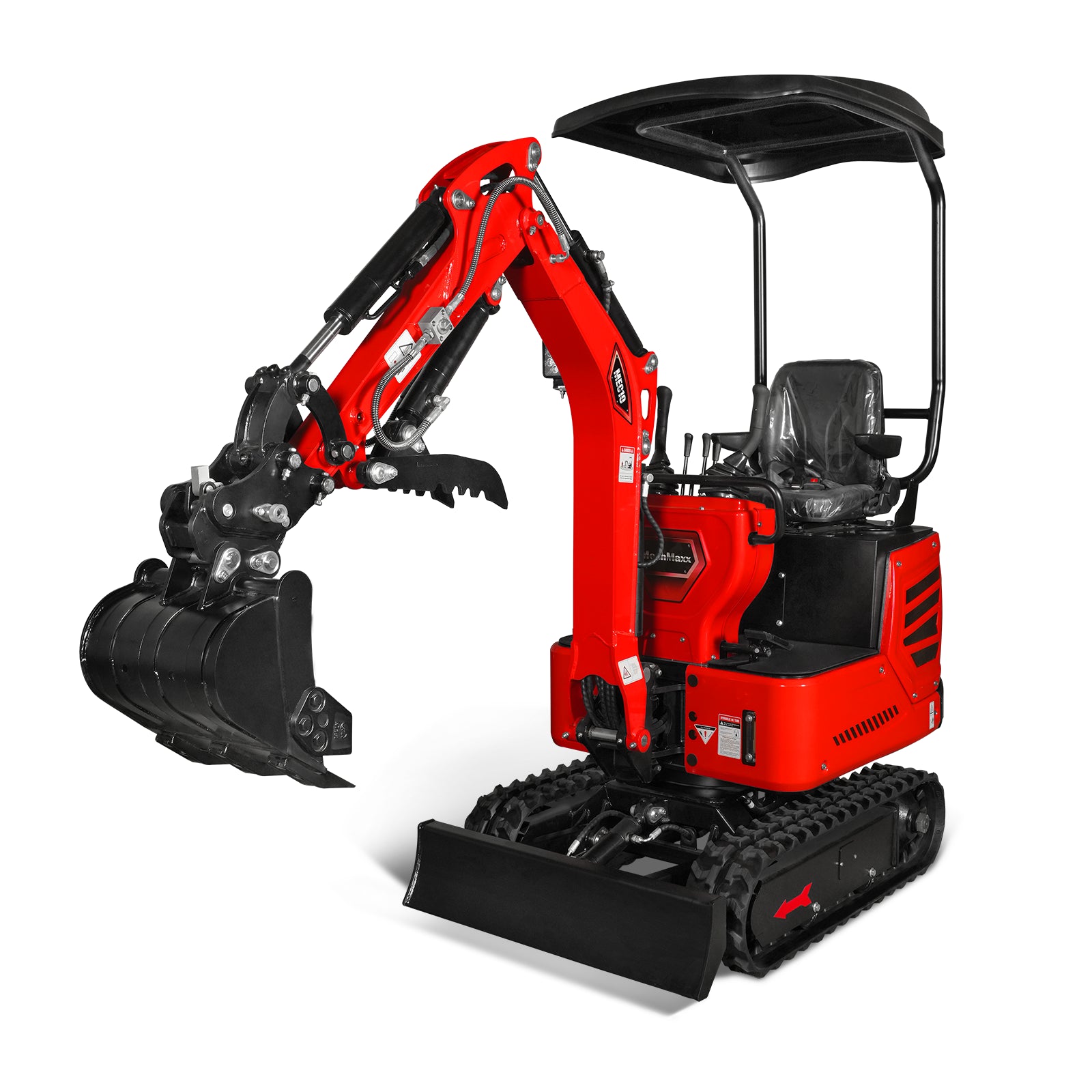

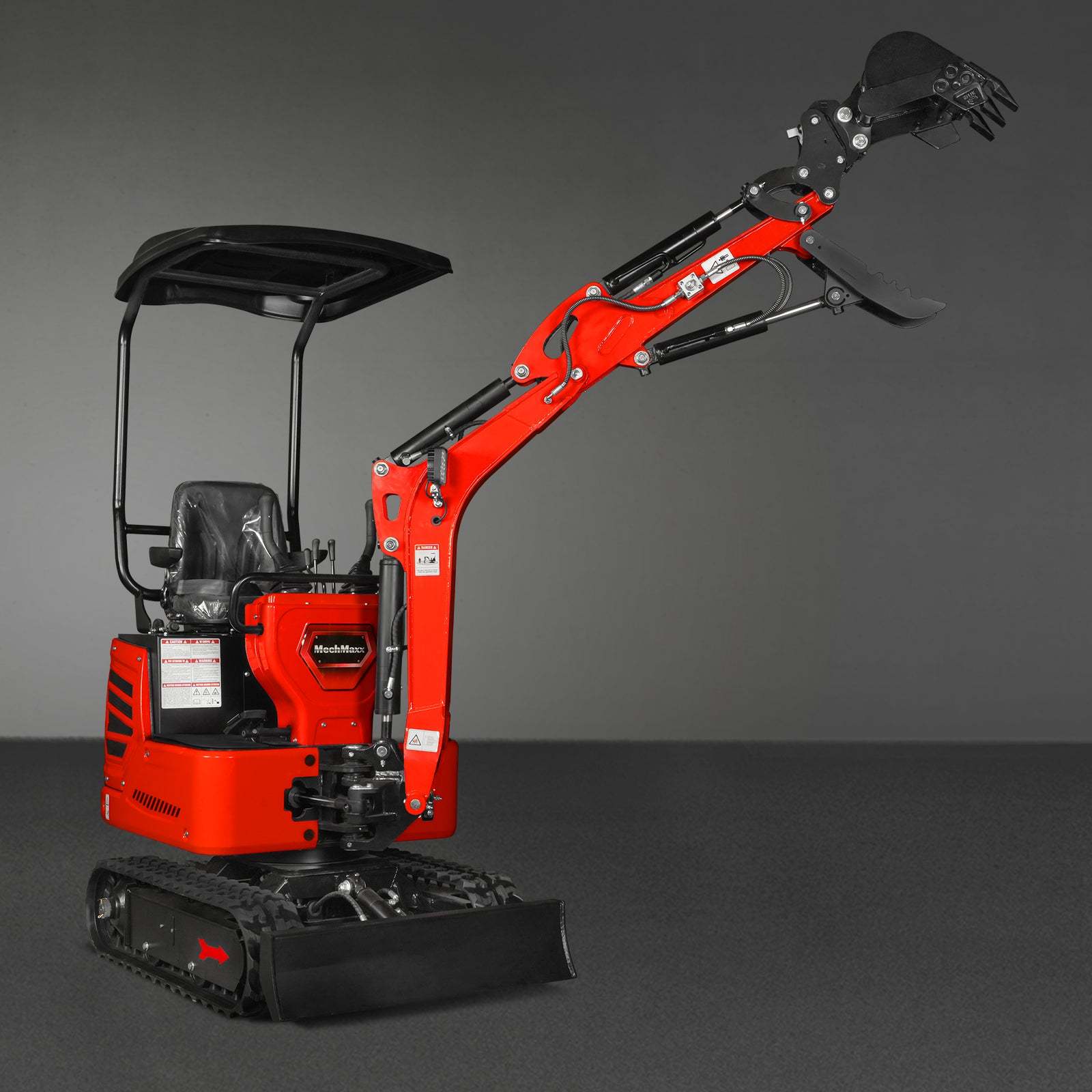

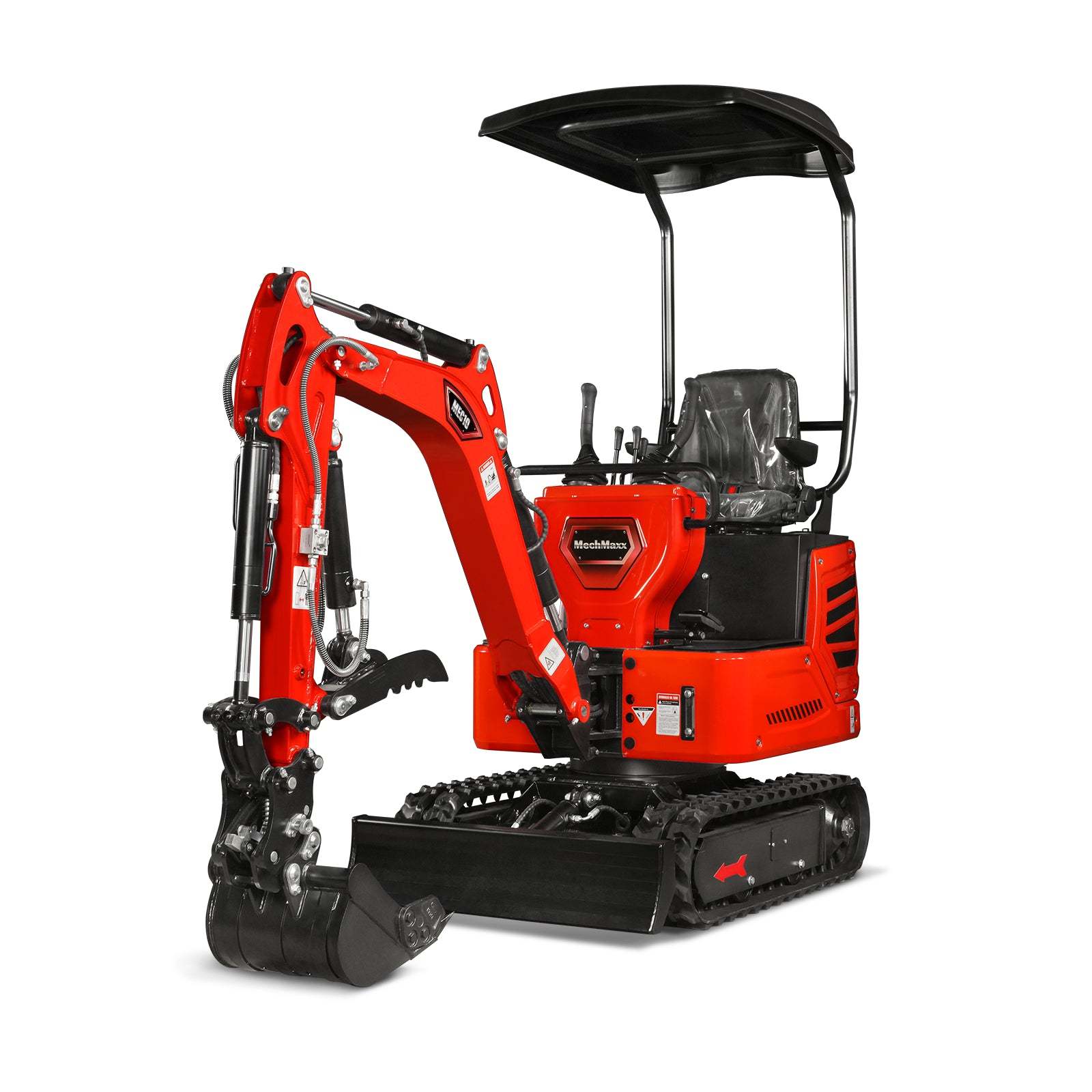

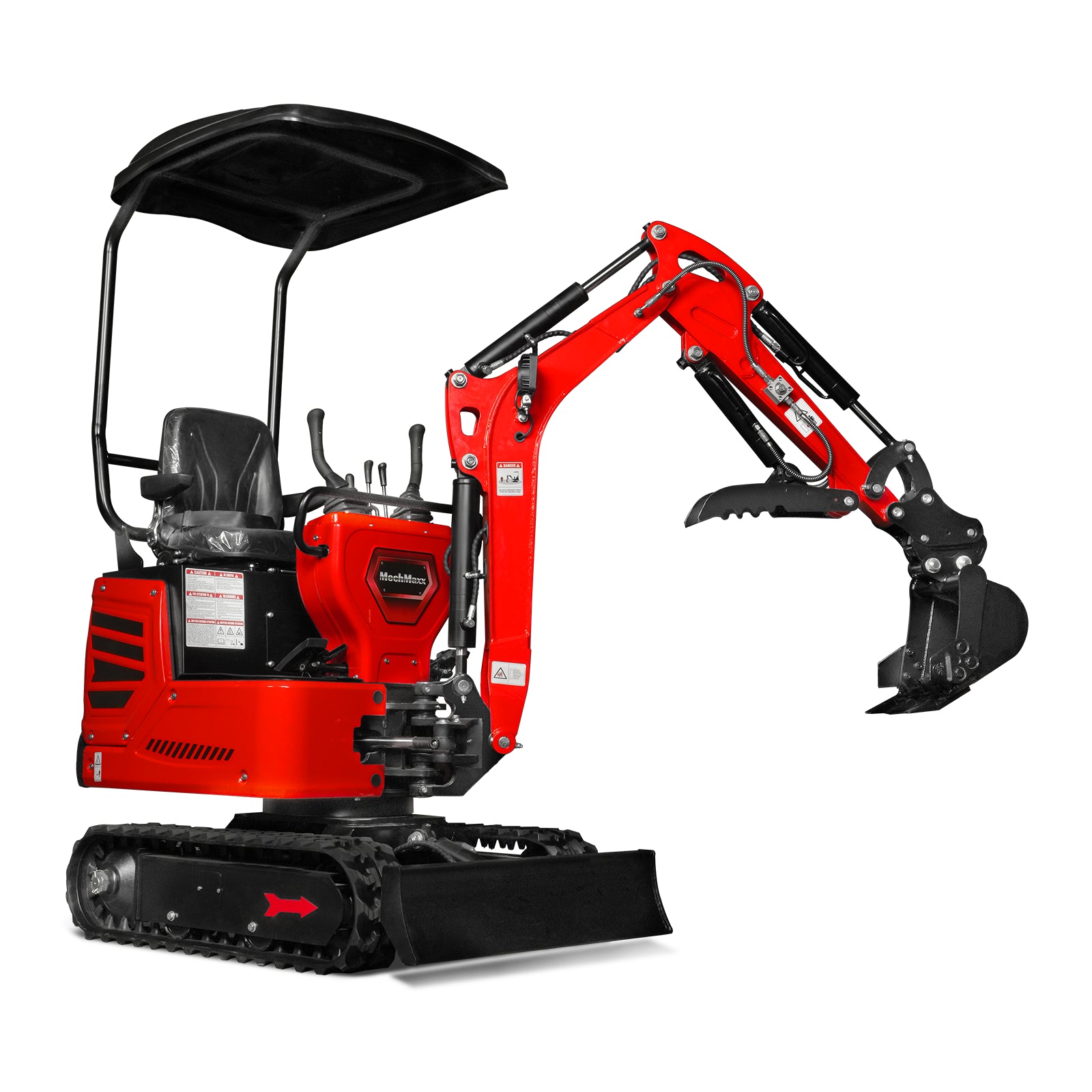

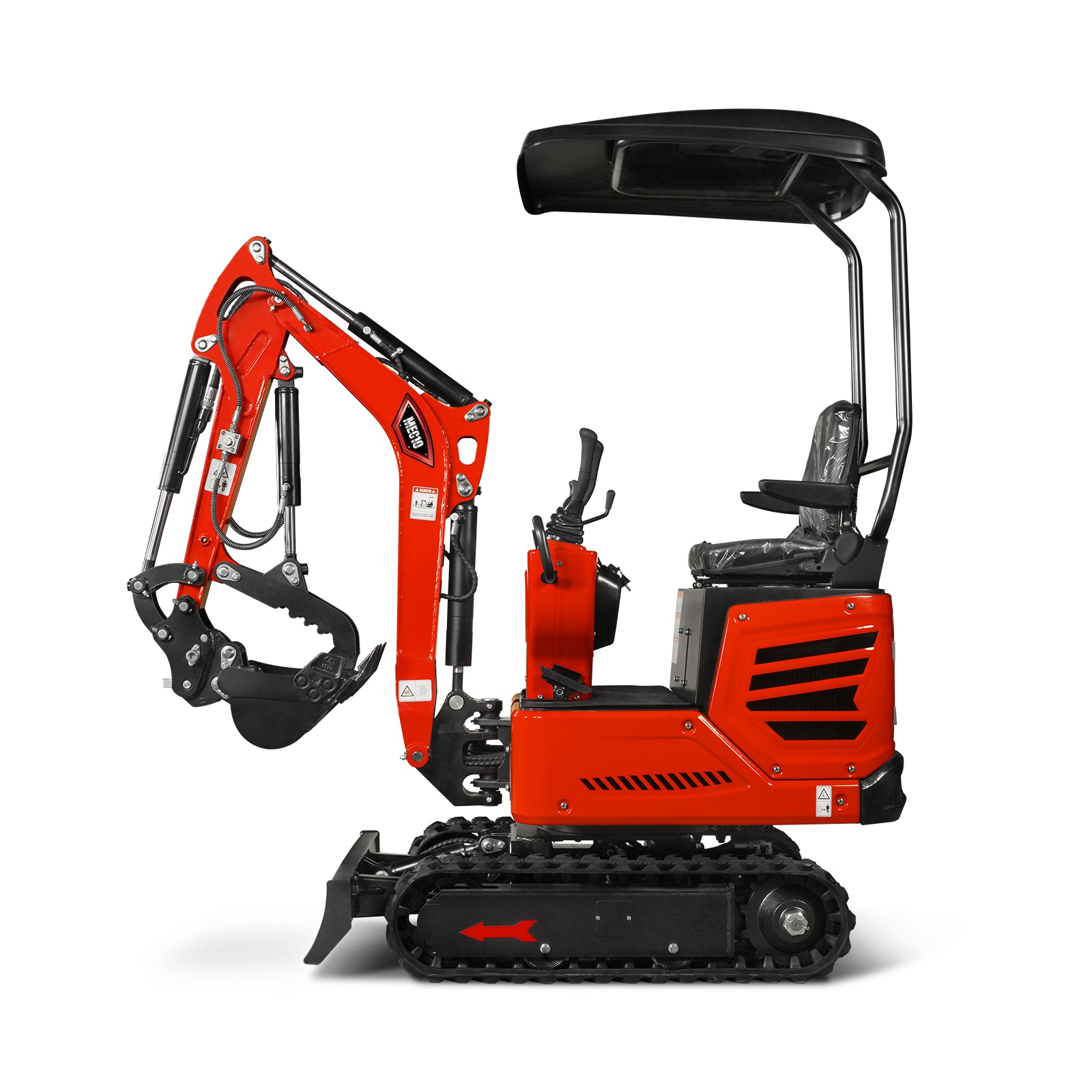

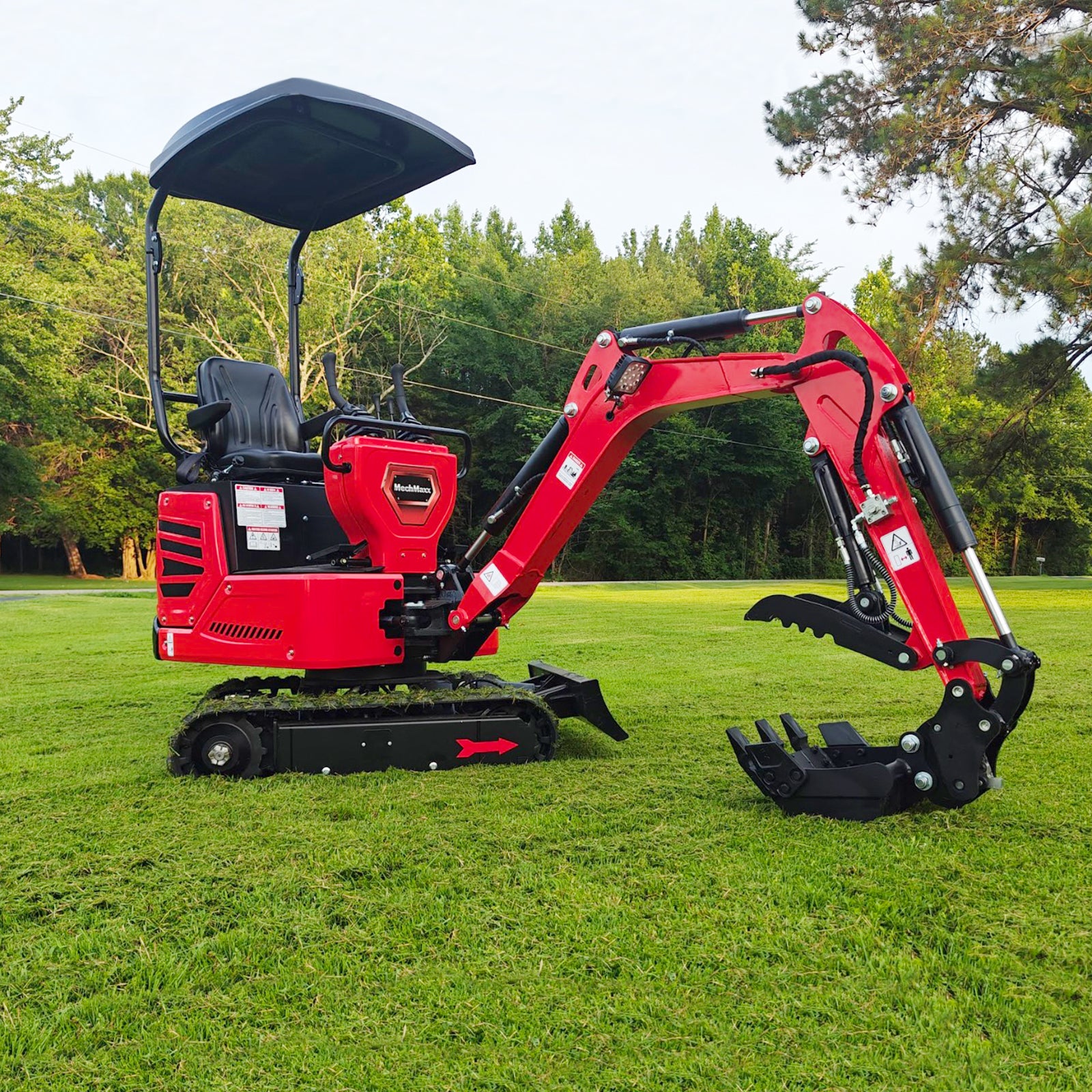

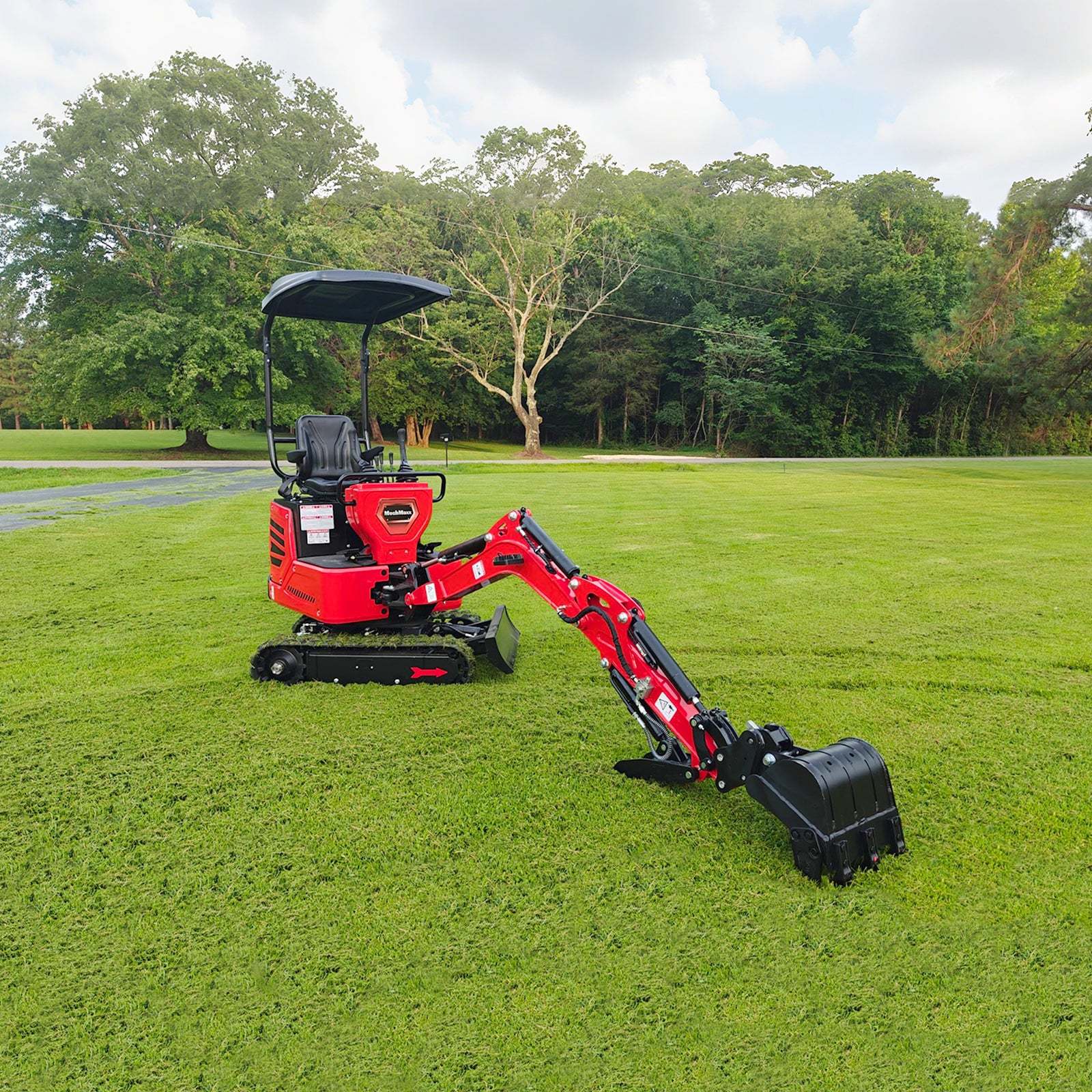

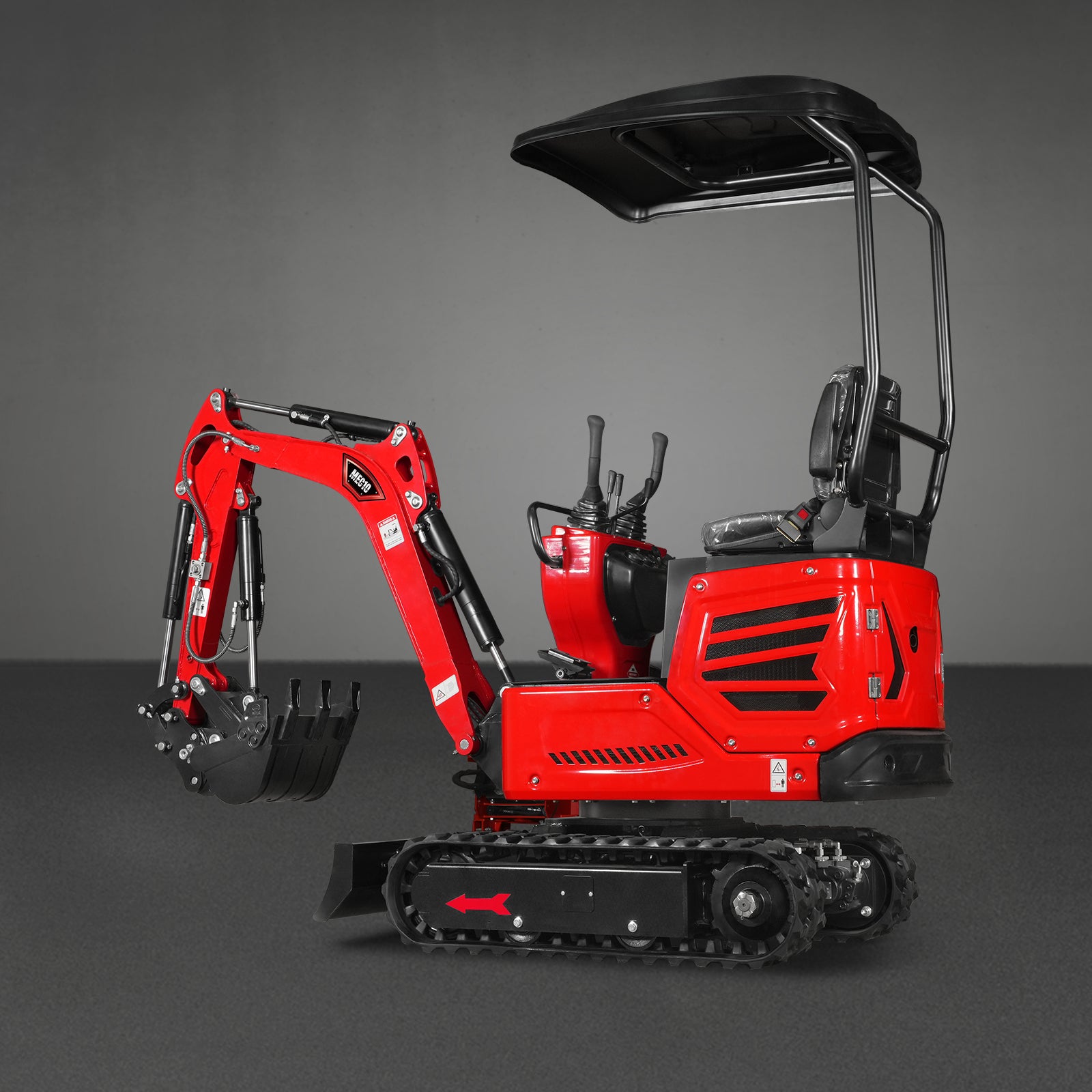

Mini Compact Excavator MEC10 (Honda GX390)
Nationwide delivery is available on this unit. Most orders ship within 2–5 business days from payment confirmation.
This machine includes a 1-Year Limited Warranty covering defects in materials and workmanship under normal use.
We want you to be confident in your purchase. Standard policy is a 30-day return window on unused equipment, subject to inspection.
This bundle is included at no extra cost with your purchase (you don’t need to add these separately).
Mini Compact Excavator MEC10 (Honda GX390)
Mini Compact Excavator Cover (MEC10/MEC12)
Hydraulic Hammer Breaker
Filter Element Set (Oil + Suction + Air)
32" Tilt Bucket

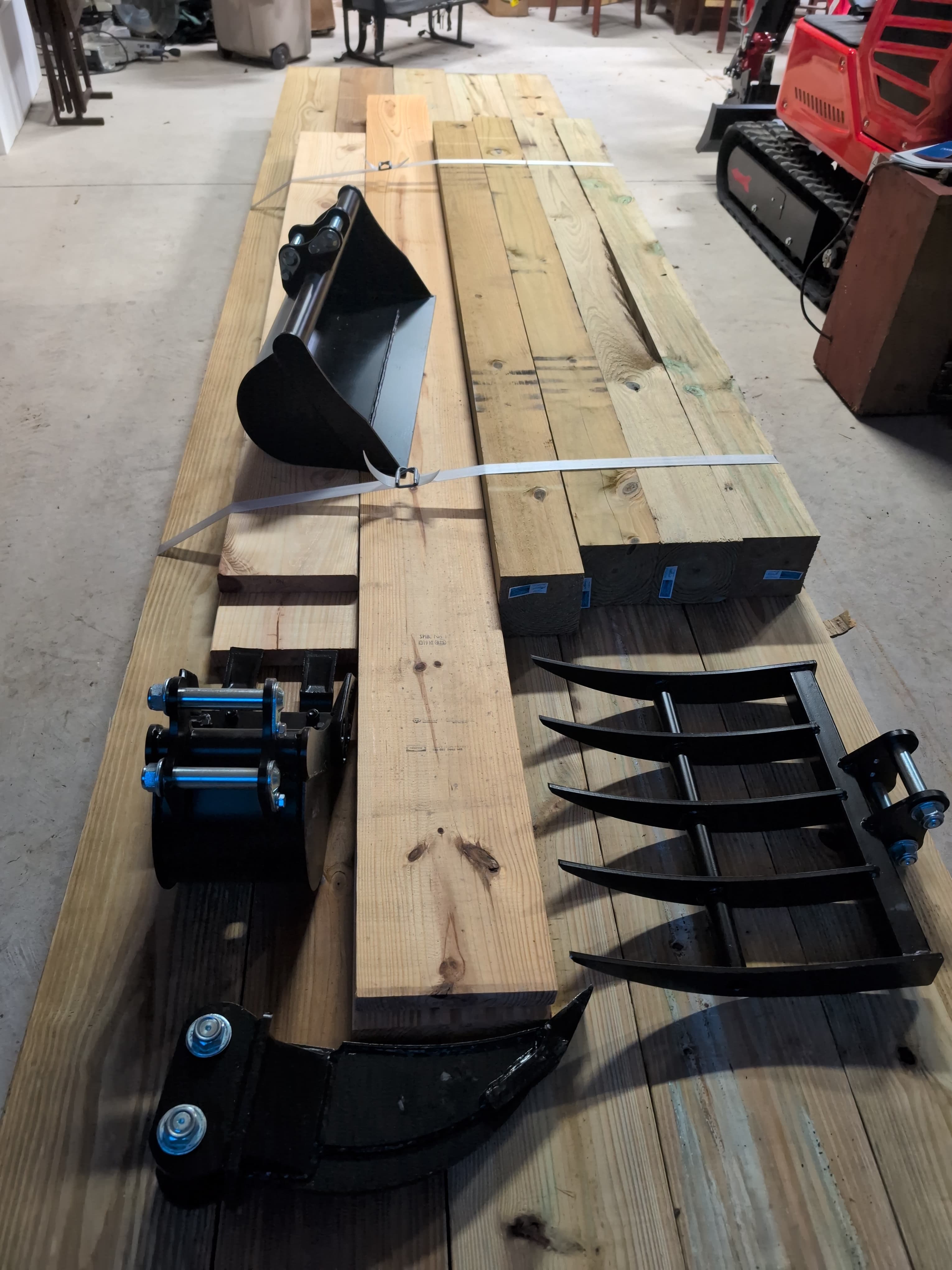

4-Piece Attachment Set
32×8" Auger Attachment
Compact power built for narrow lanes, backyards, and tight job sites. Reliable GX390 performance plus an upgraded hydraulic system for serious work.

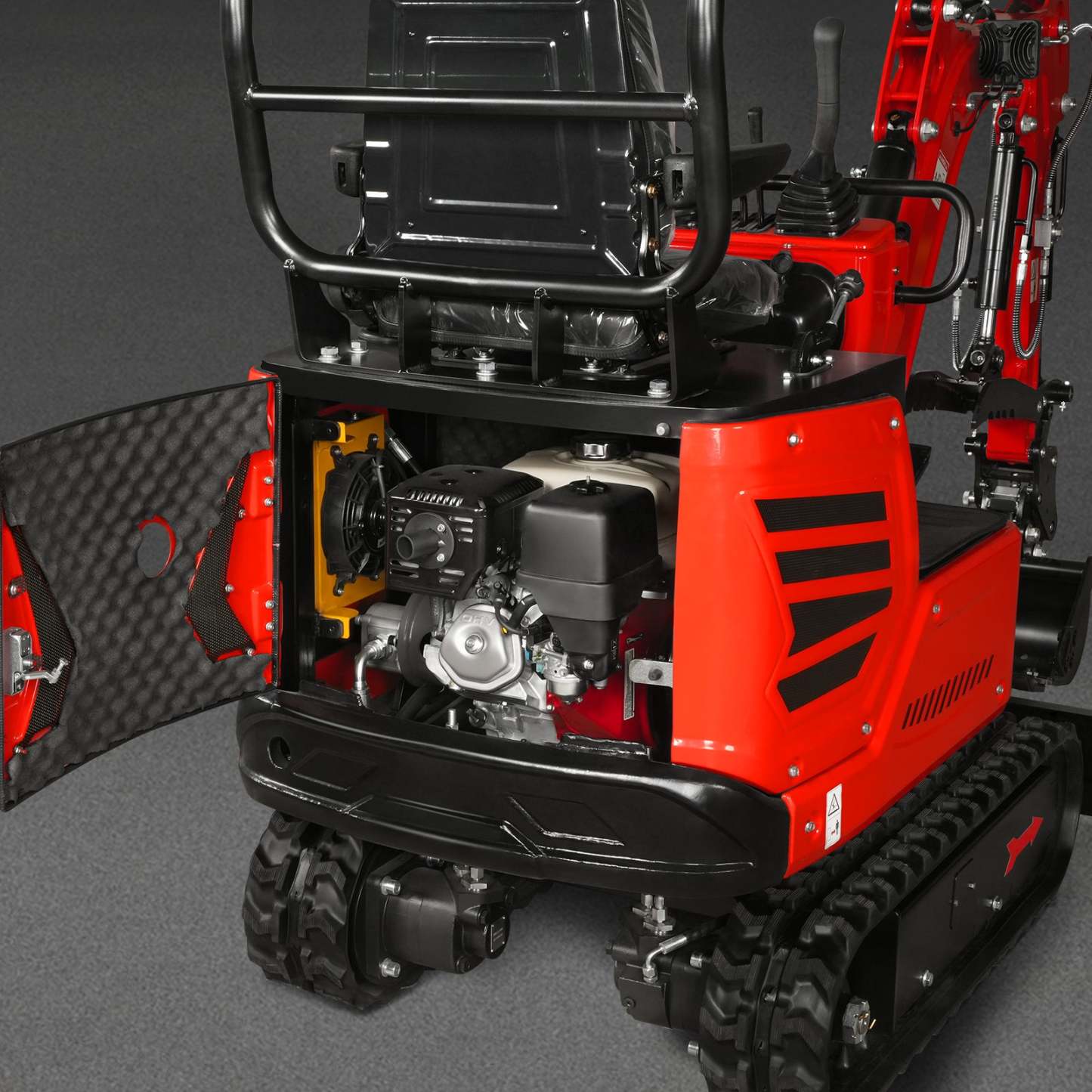

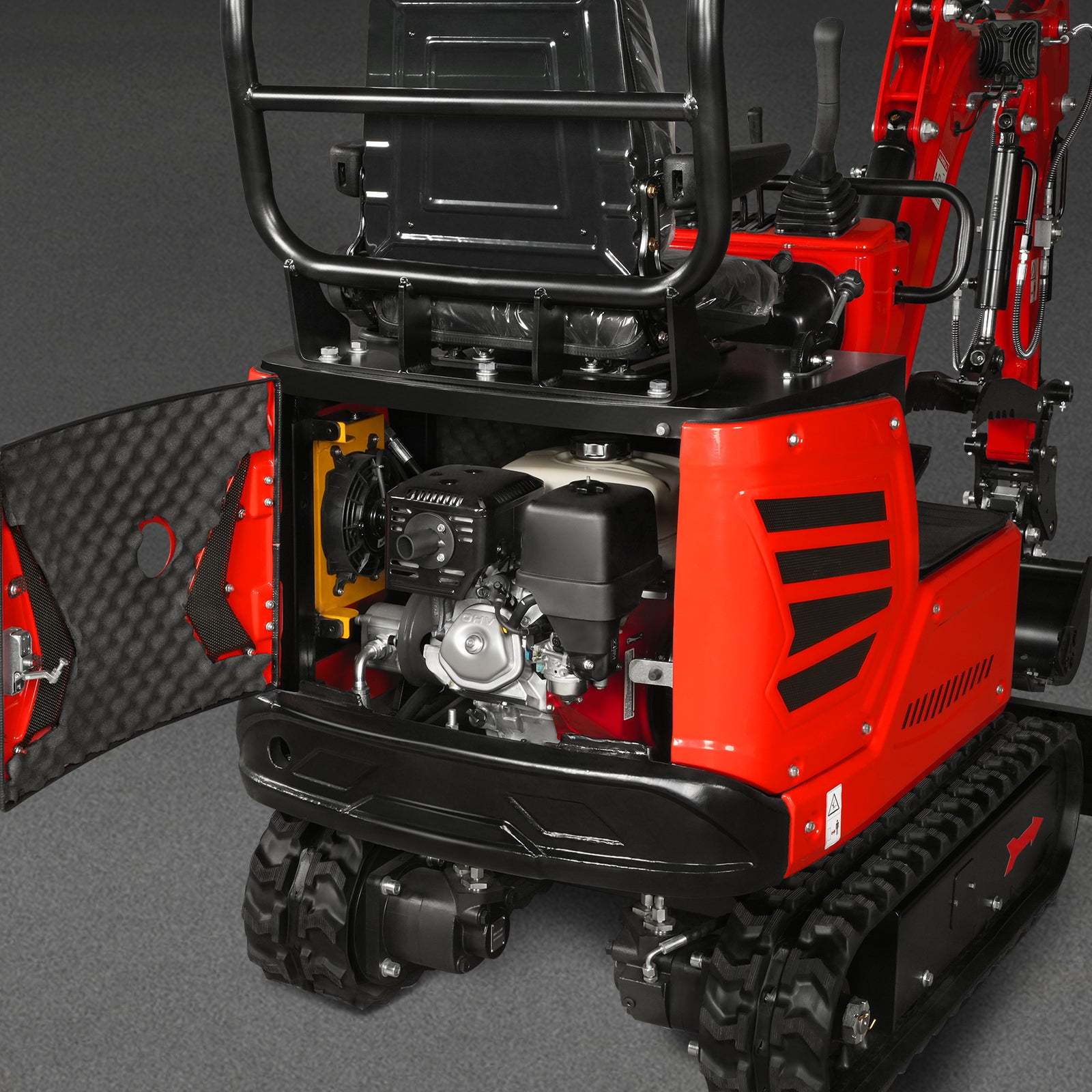

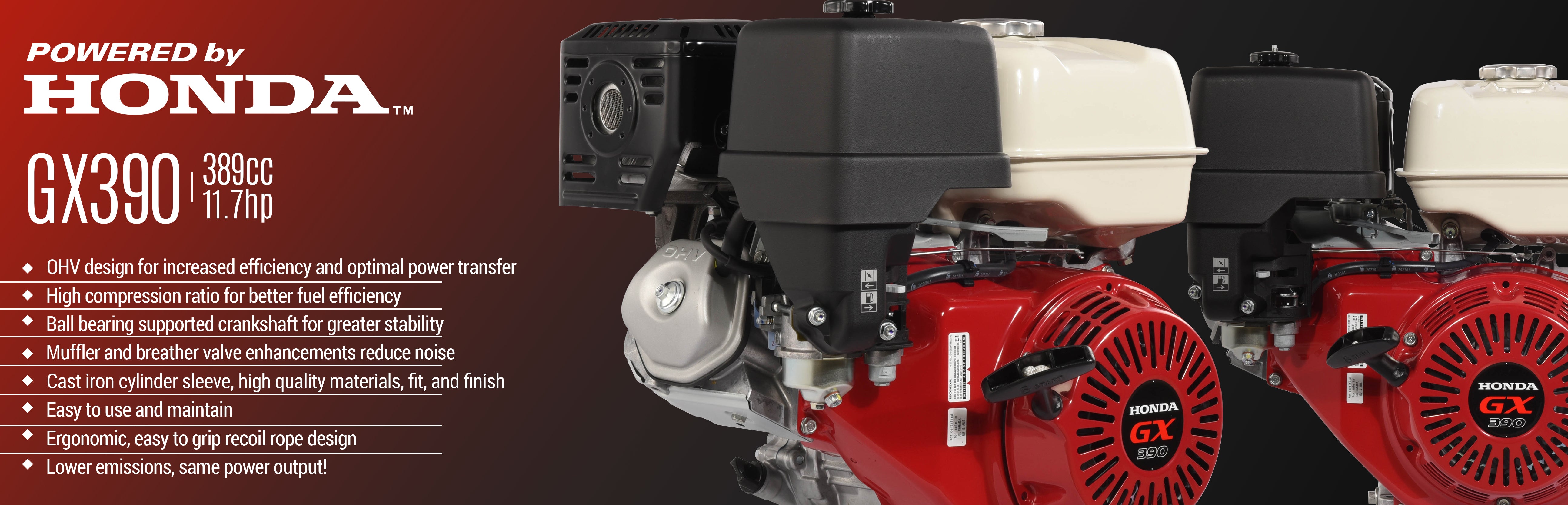

Built around a proven 389cc GX390 platform for dependable output and efficiency—ideal for compact excavation where reliability matters most.

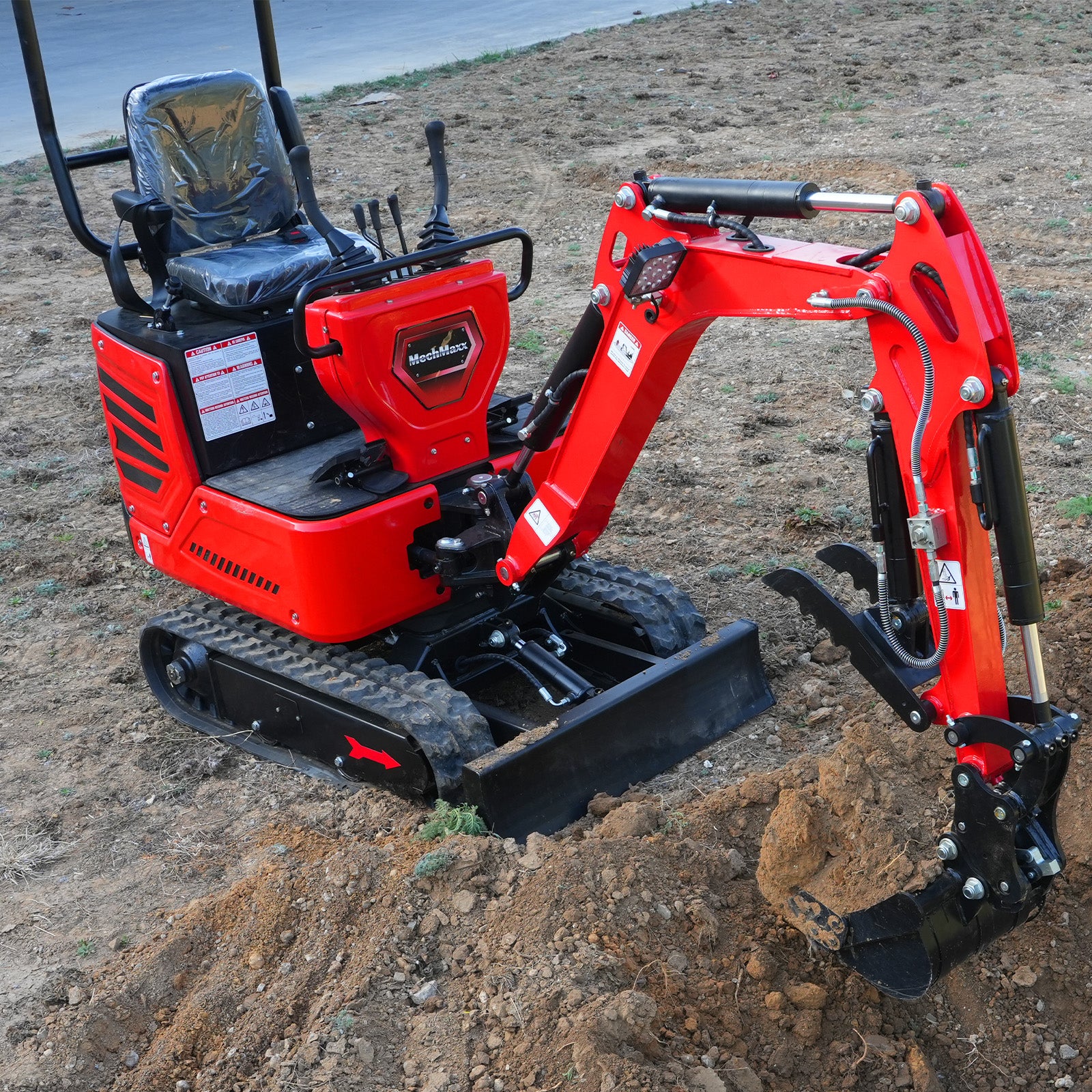

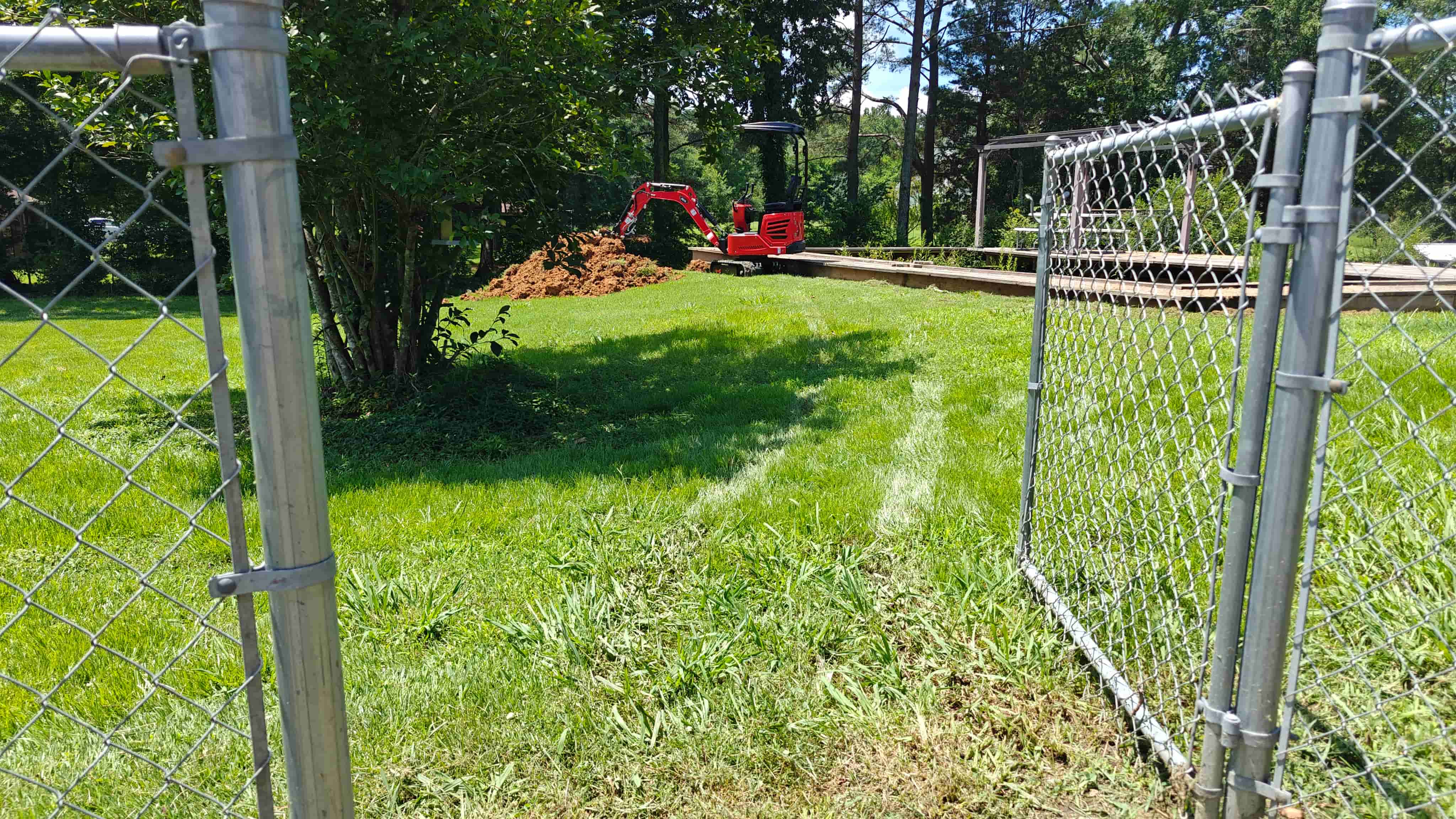

Designed to work where bigger machines can’t—great for alleys, gardens, and backyard projects.

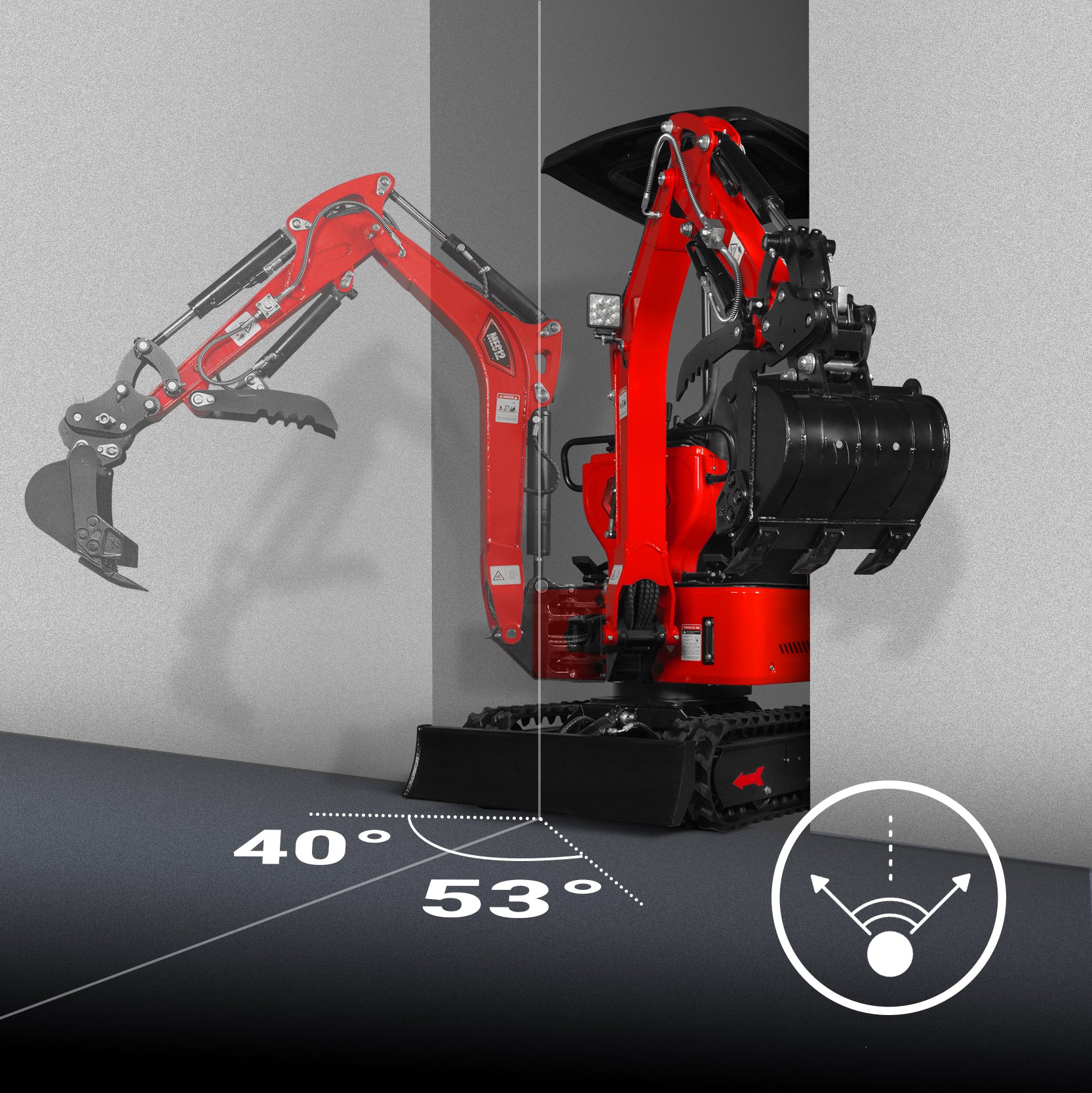

Improves digging along fences/walls and helps place spoil where you want with less repositioning.

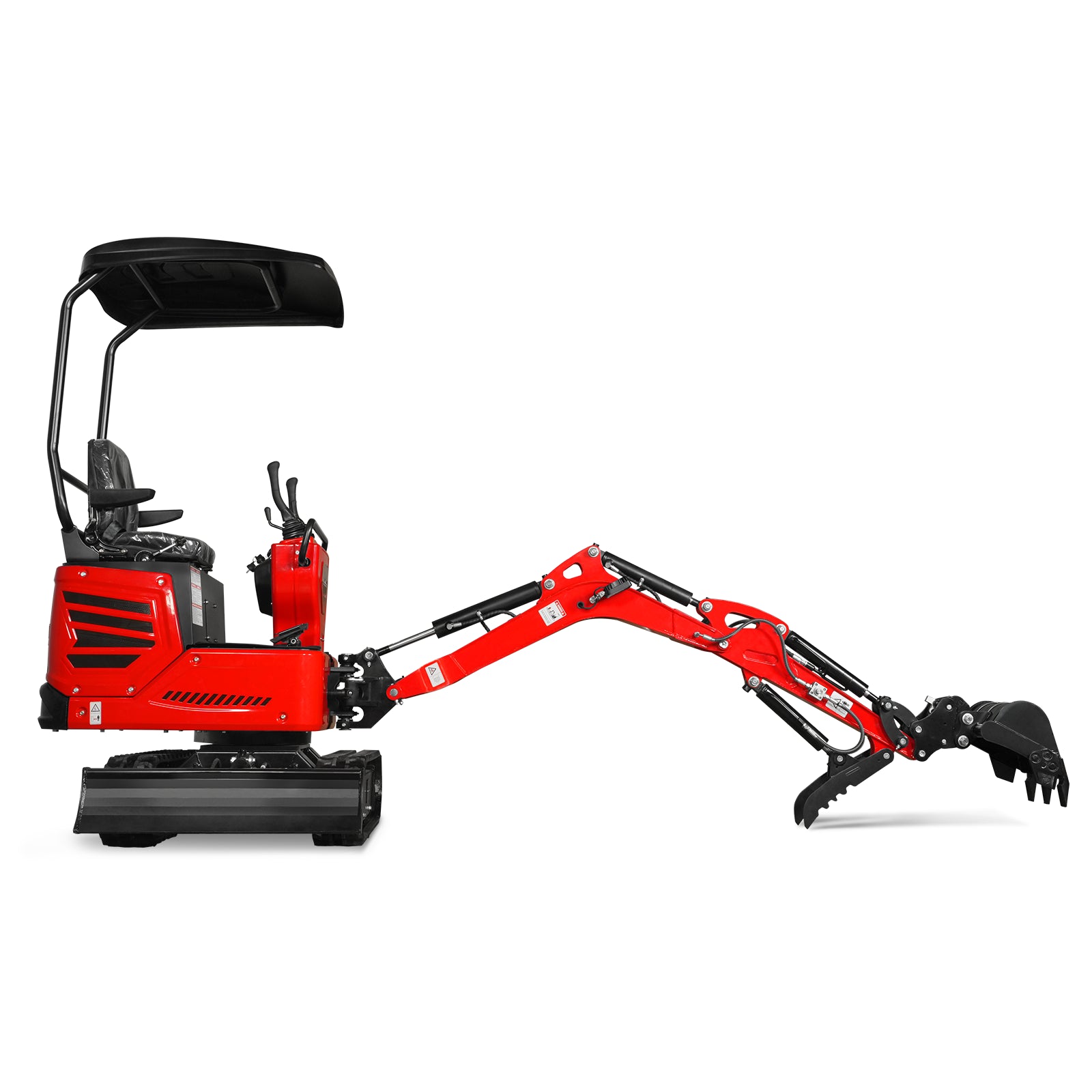

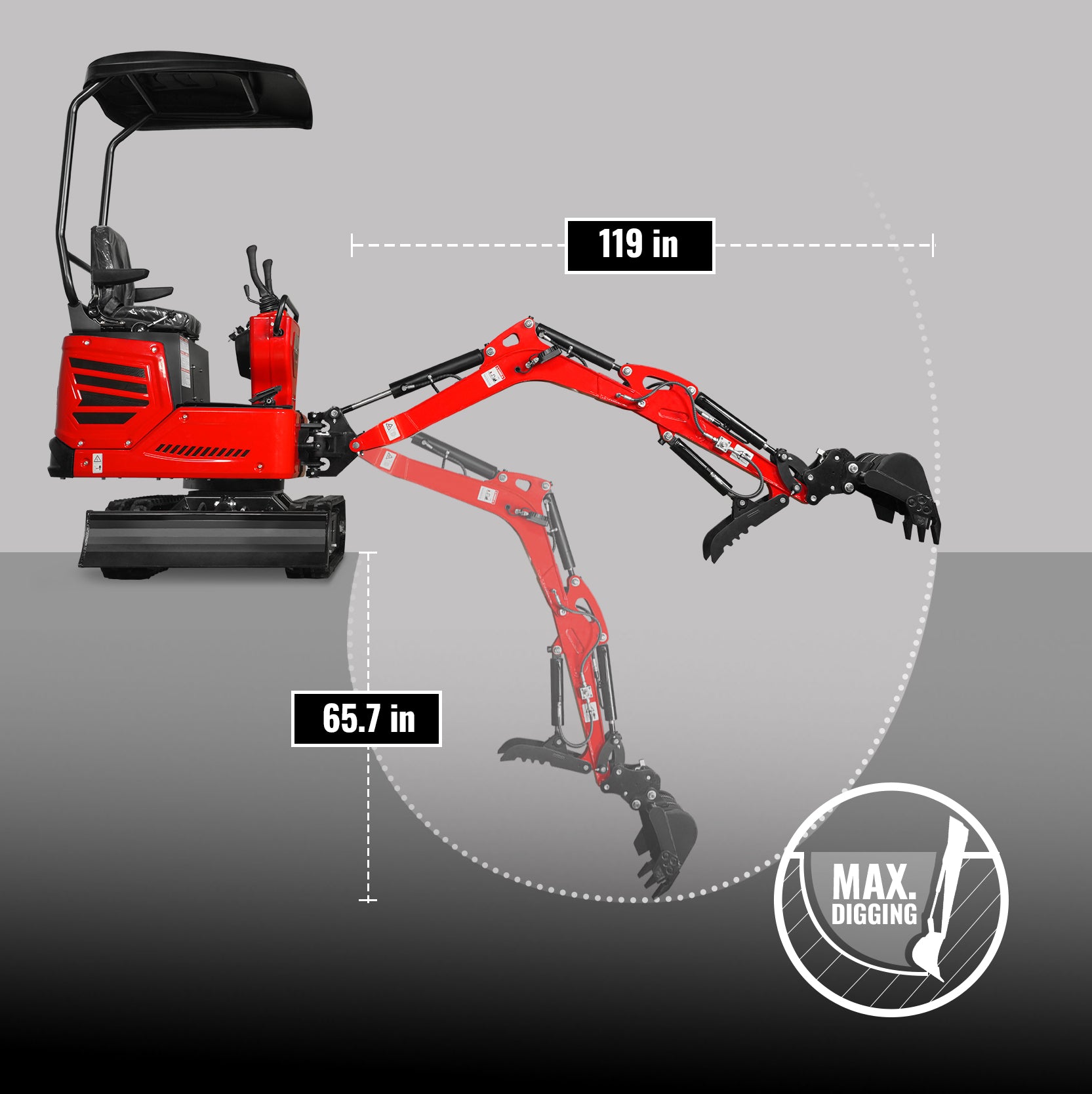

Reach into hard-to-access areas without constantly moving the machine.

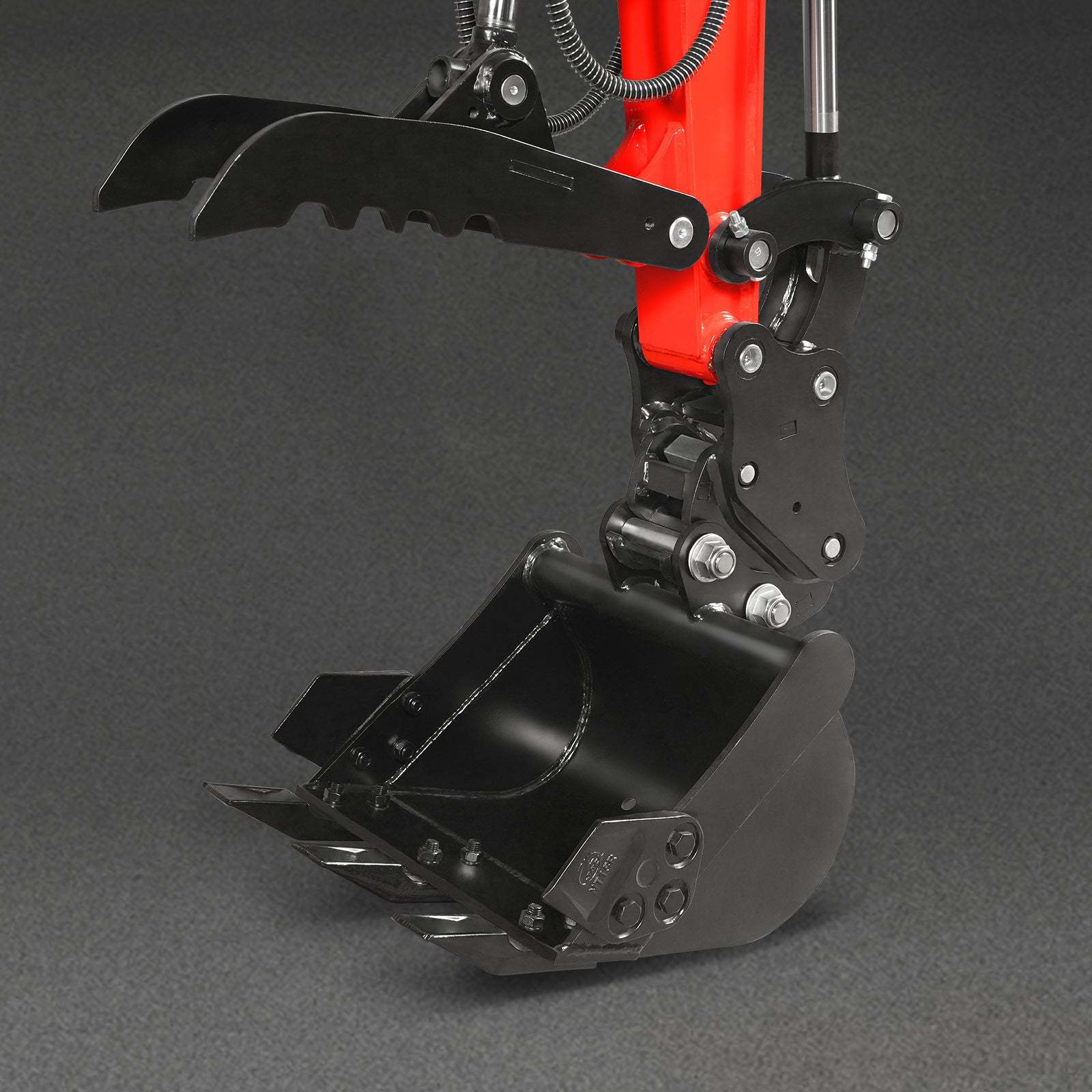

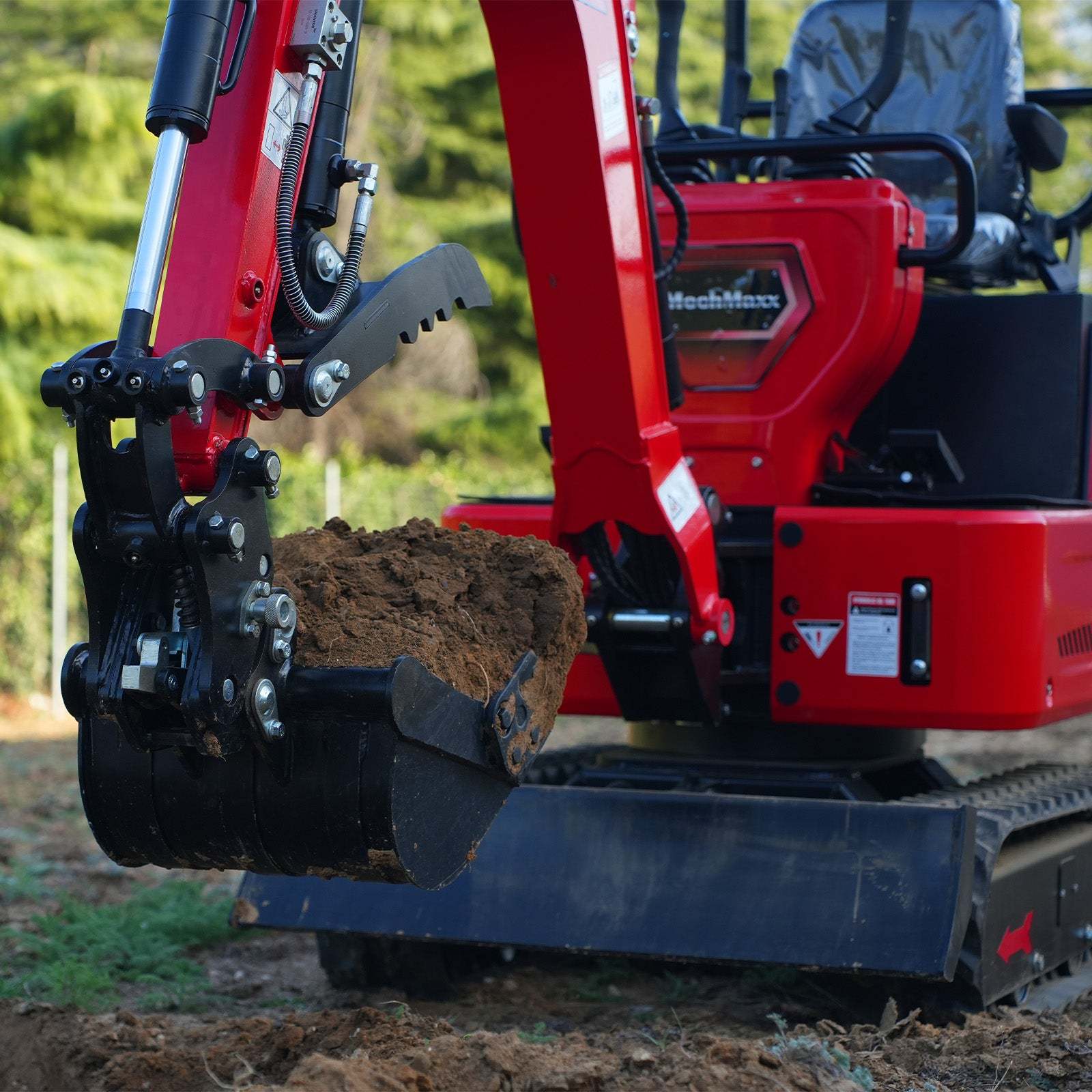

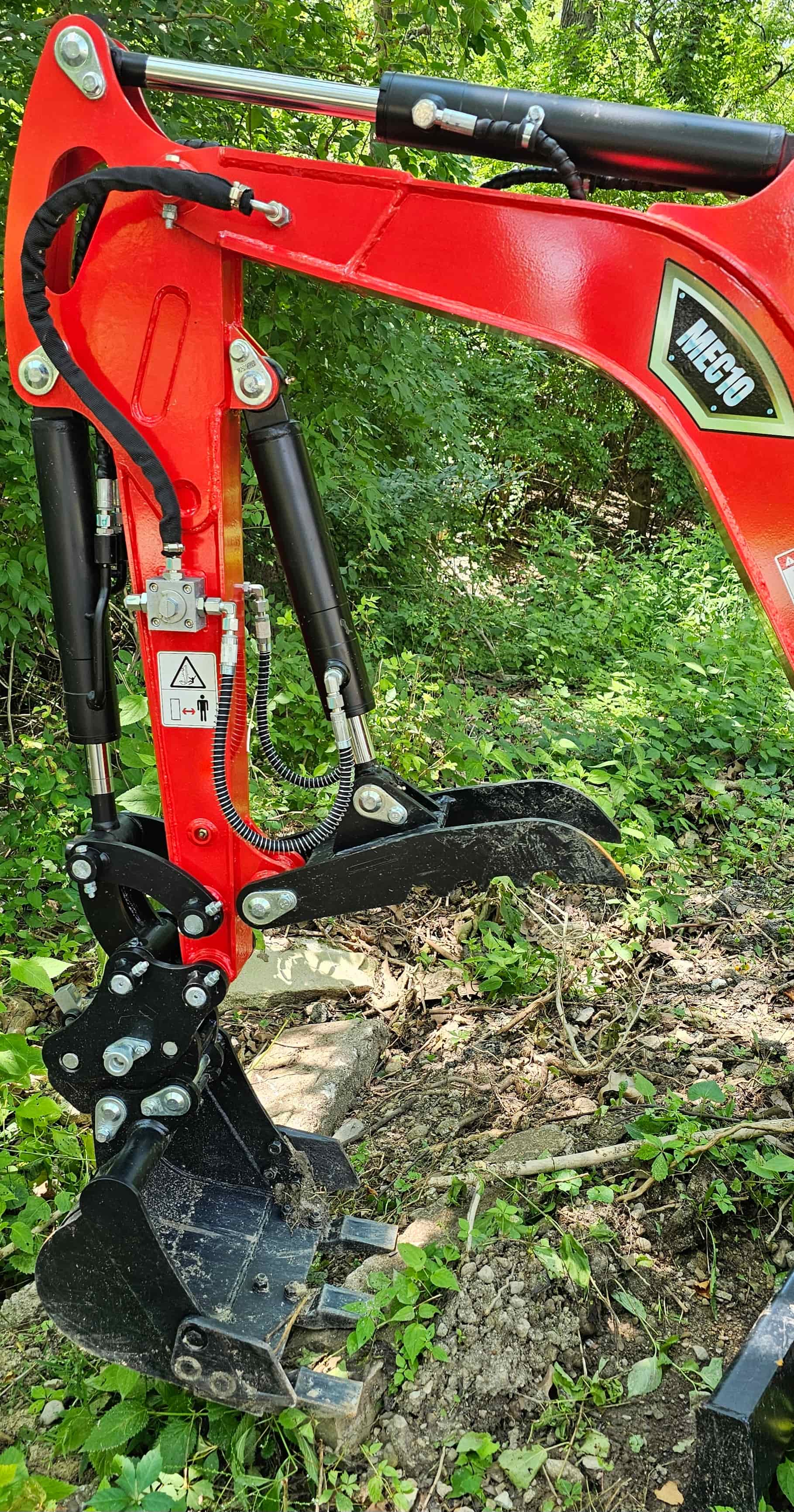

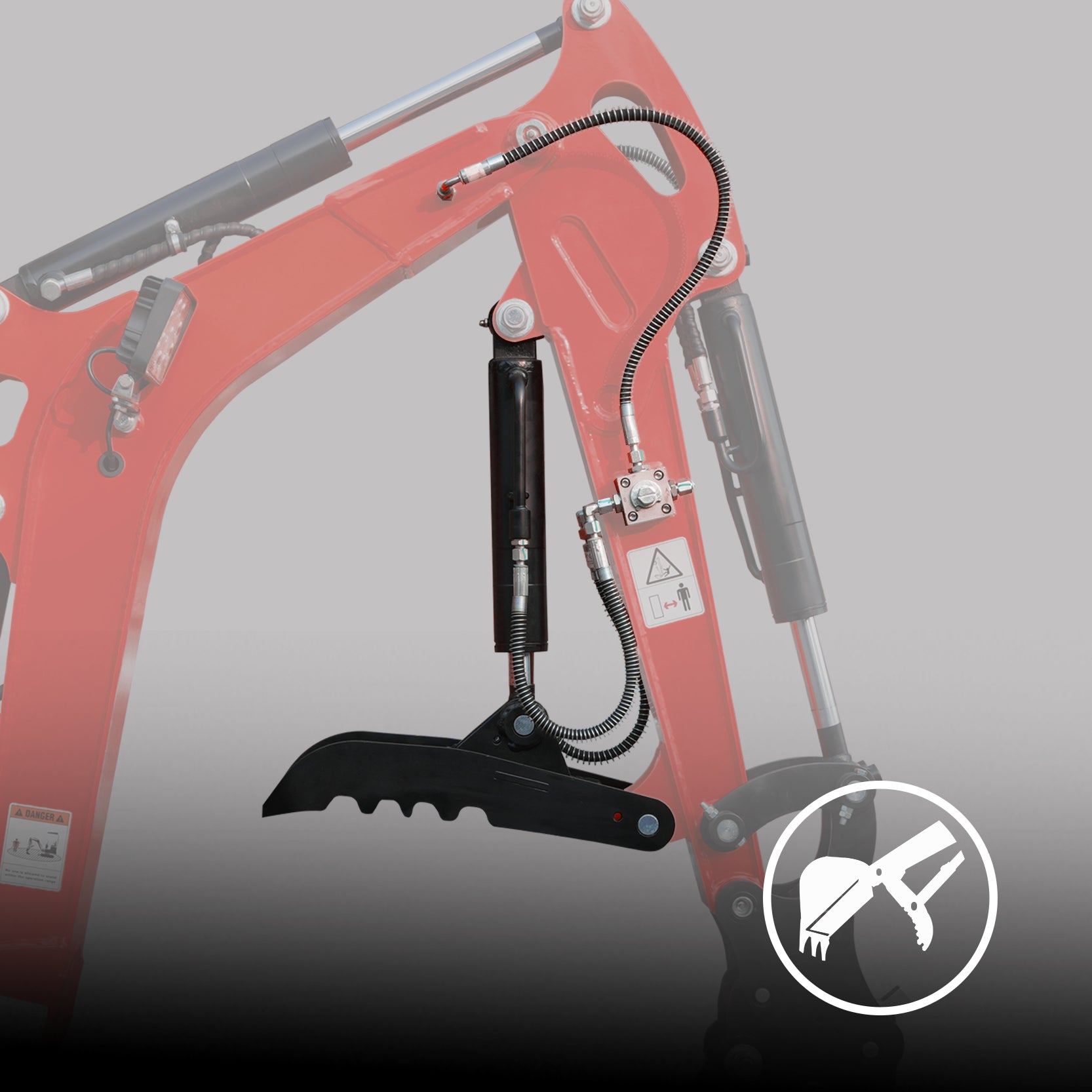

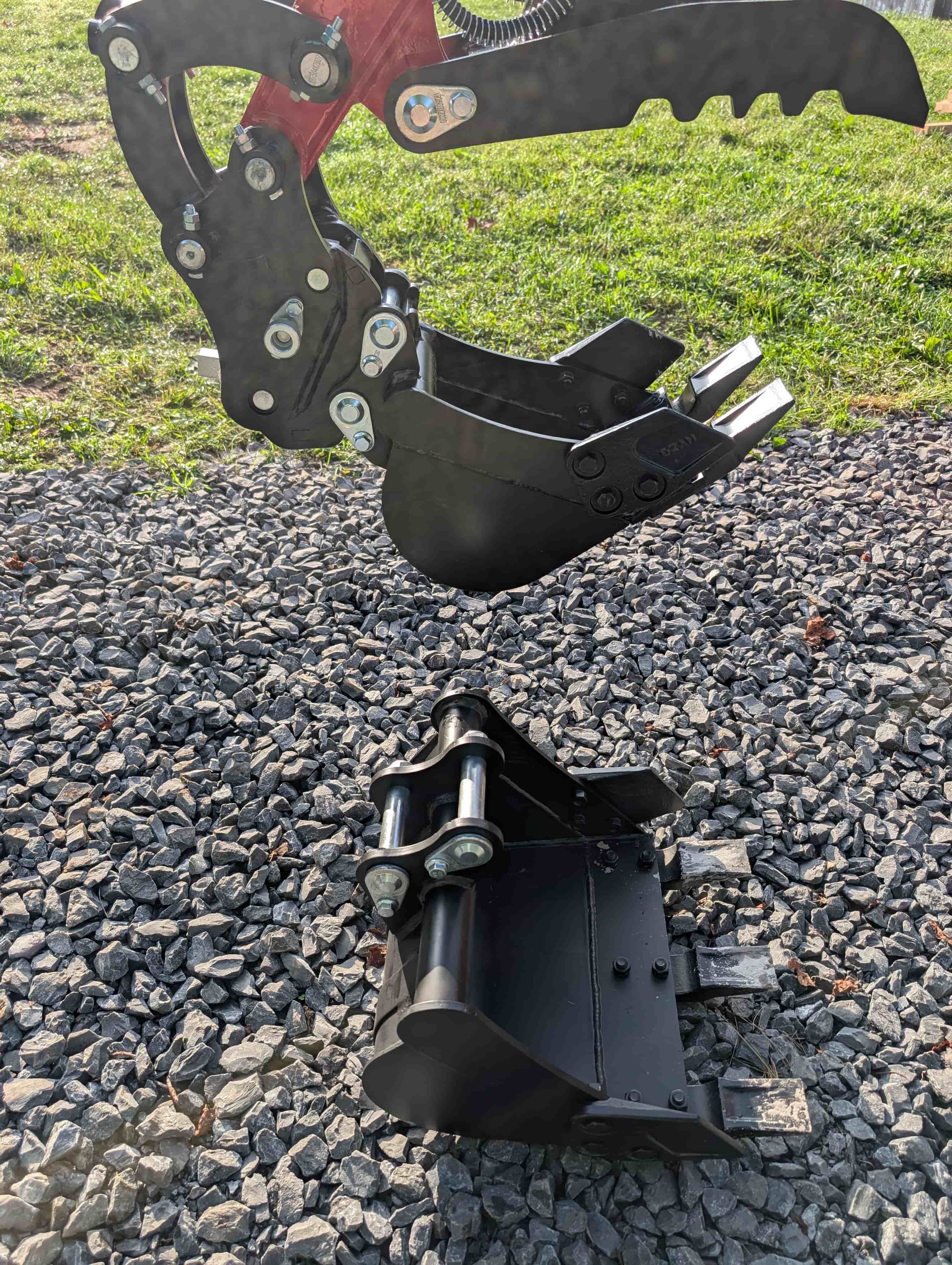

Handle rocks, branches, and debris easily—thumb position adjusts from the operator’s seat.

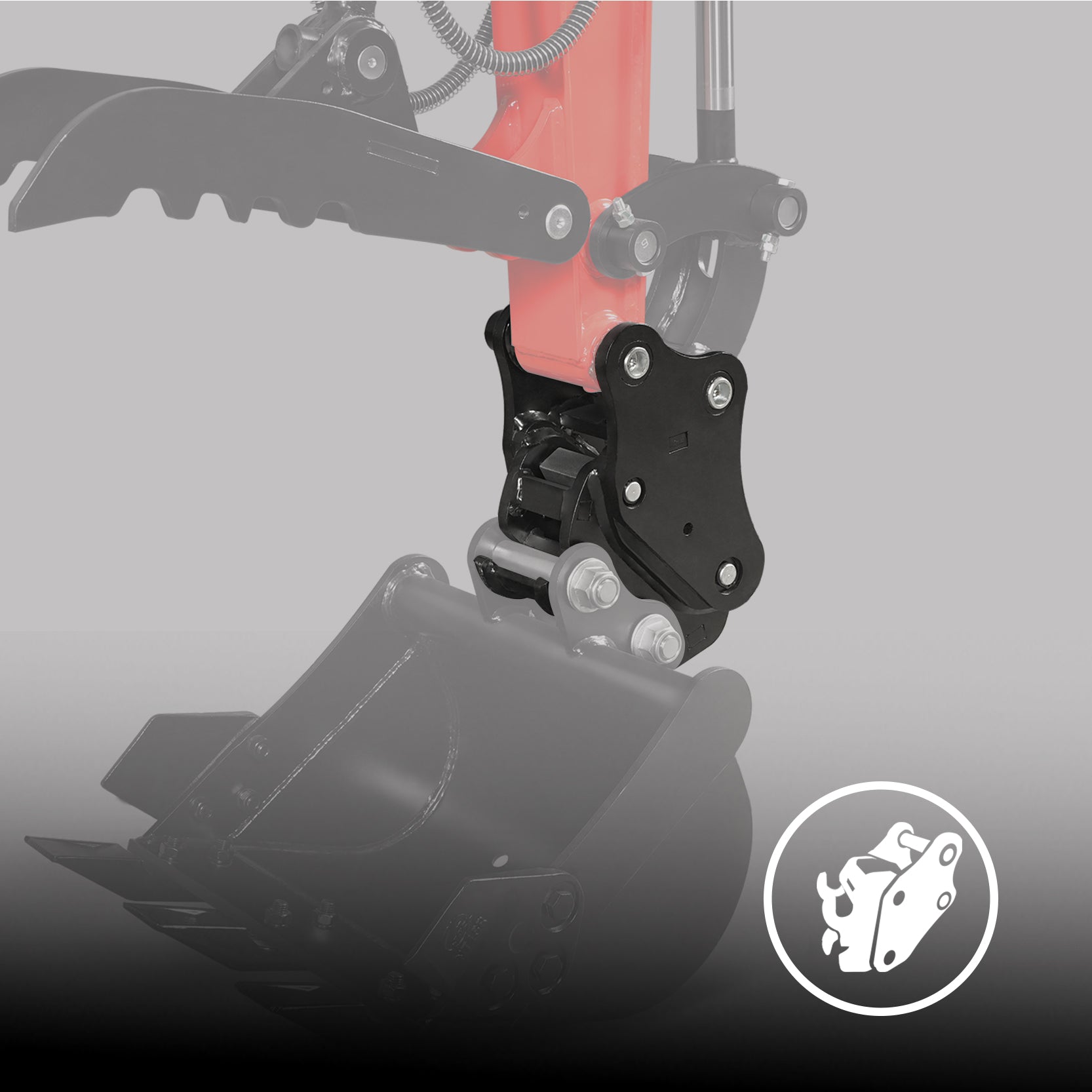

Durable steel quick hitch design helps speed up attachment changes on the job.
Upgraded hydraulics help support demanding, higher-flow attachments (not included) for tougher tasks.
Clear coverage details for the Mini Compact Excavator (SKU:150530), plus optional extended protection for eligible products.
The Mini Compact Excavator (SKU:150530) stands up to extreme testing and comes with a one-year warranty for the machine and a one-year warranty for the engine.
Optional extended plans can add 1–2 more years of product protection on select eligible products.
Specs are provided for comparison purposes and may vary slightly due to manufacturing and operating conditions.
Standard Bucket Capacity
0.7 cu-ft
Standard Bucket Width
15 in
Auxiliary Std Flow
5.7 gal/min
Max. Tractive Force
3035 lbf
Arm Digging Force
1191 lbf
Bucket Digging Force
1619 lbf
Max. Travel Speed
0.75 mile/h
Slewing Speed
11 rpm
Max. Gradeability
30°
Track Ground Pressure
5.1 psi

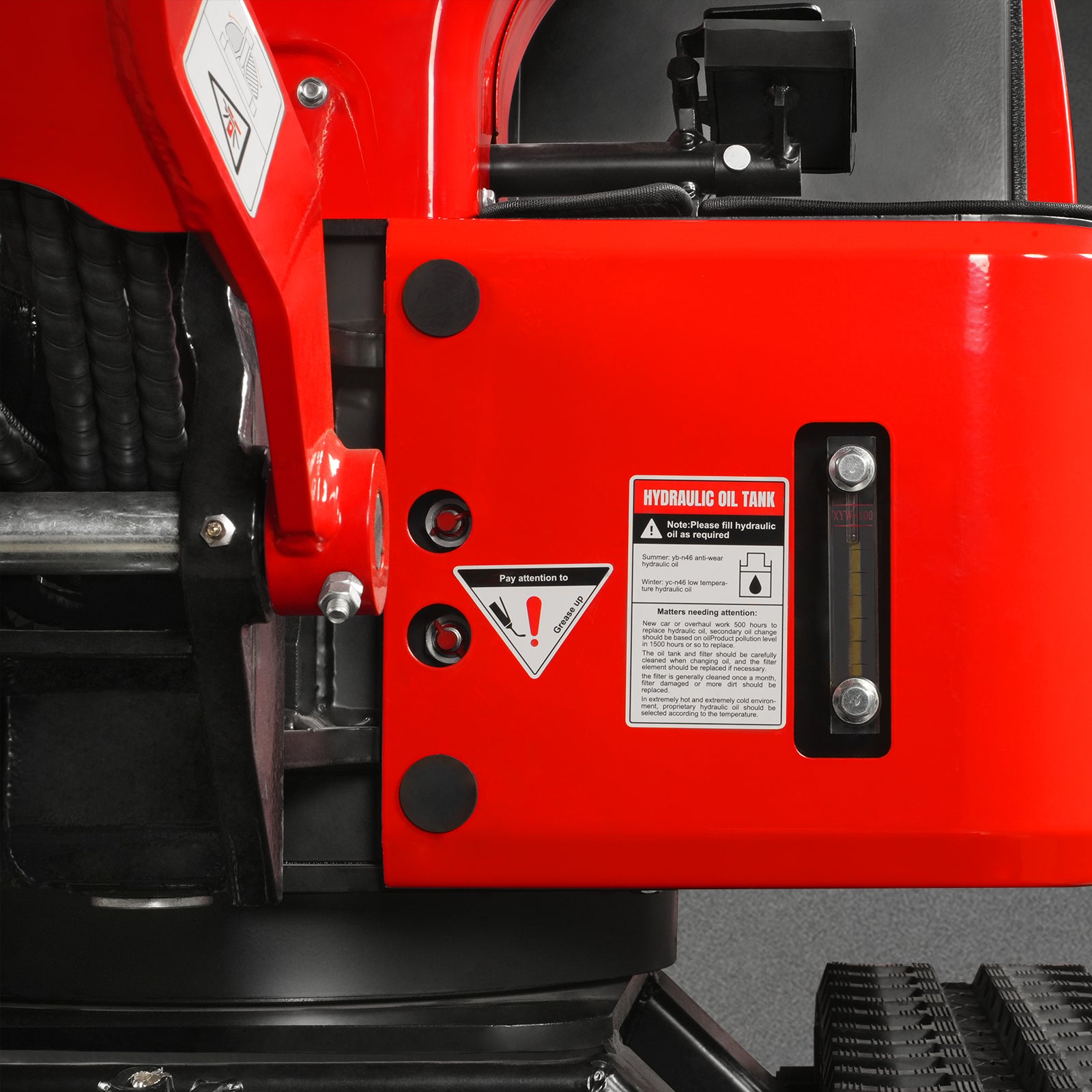

Hydraulic Oil Tank Capacity
3.96 gal
Operating Weight
2280 lb
Rated Lift Capacity
728 lb
Lift Radius
80 in

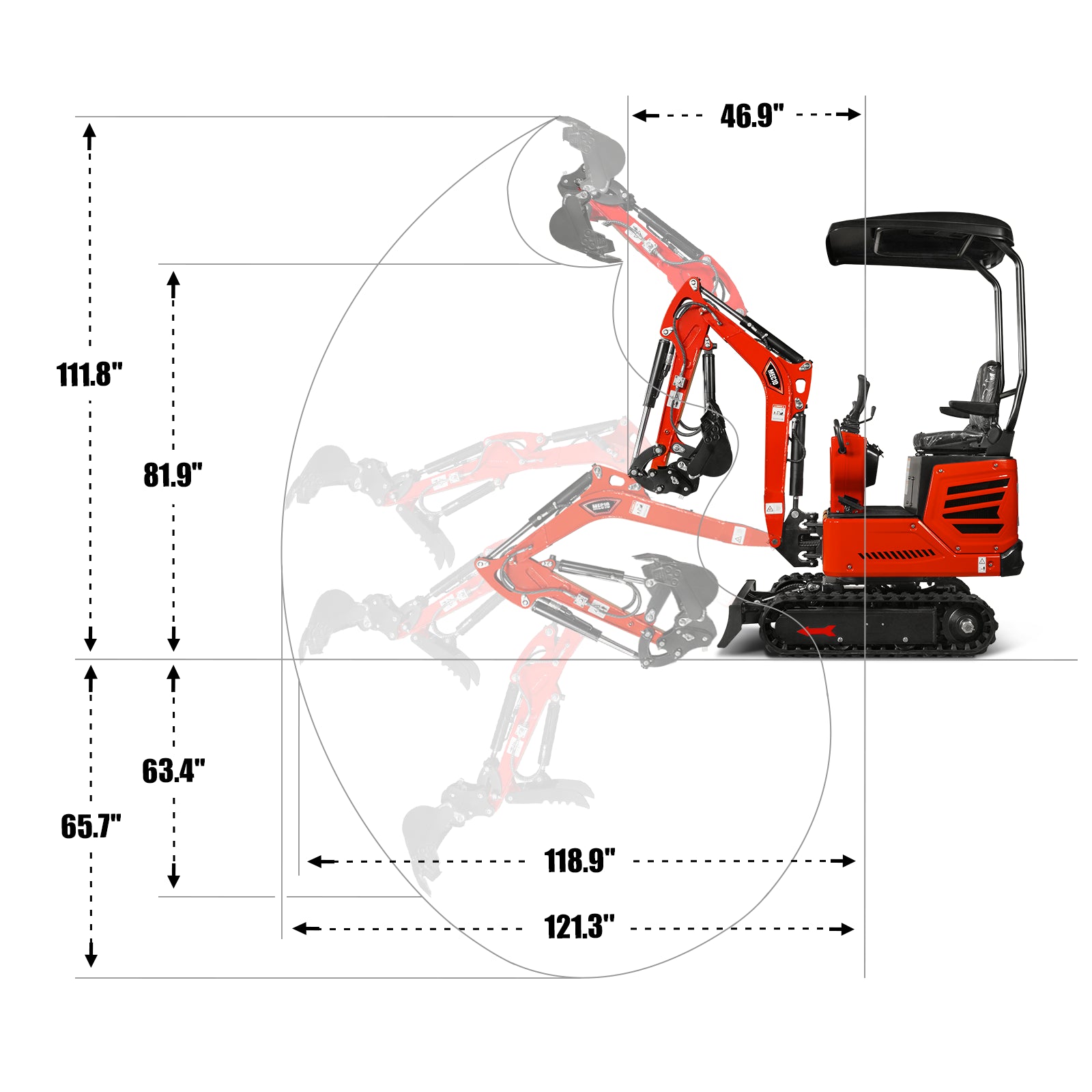

Max. Digging Radius On Ground
119 in
Max. Digging Radius
121 in
Max. Digging Depth
65.7 in
Max. Vertical Digging Depth
63.3 in
Max. Unloading Height
81.8 in
Overall Operating Height (Fully Raised)
111.8 in
Min. Turning Radius
46.8 in

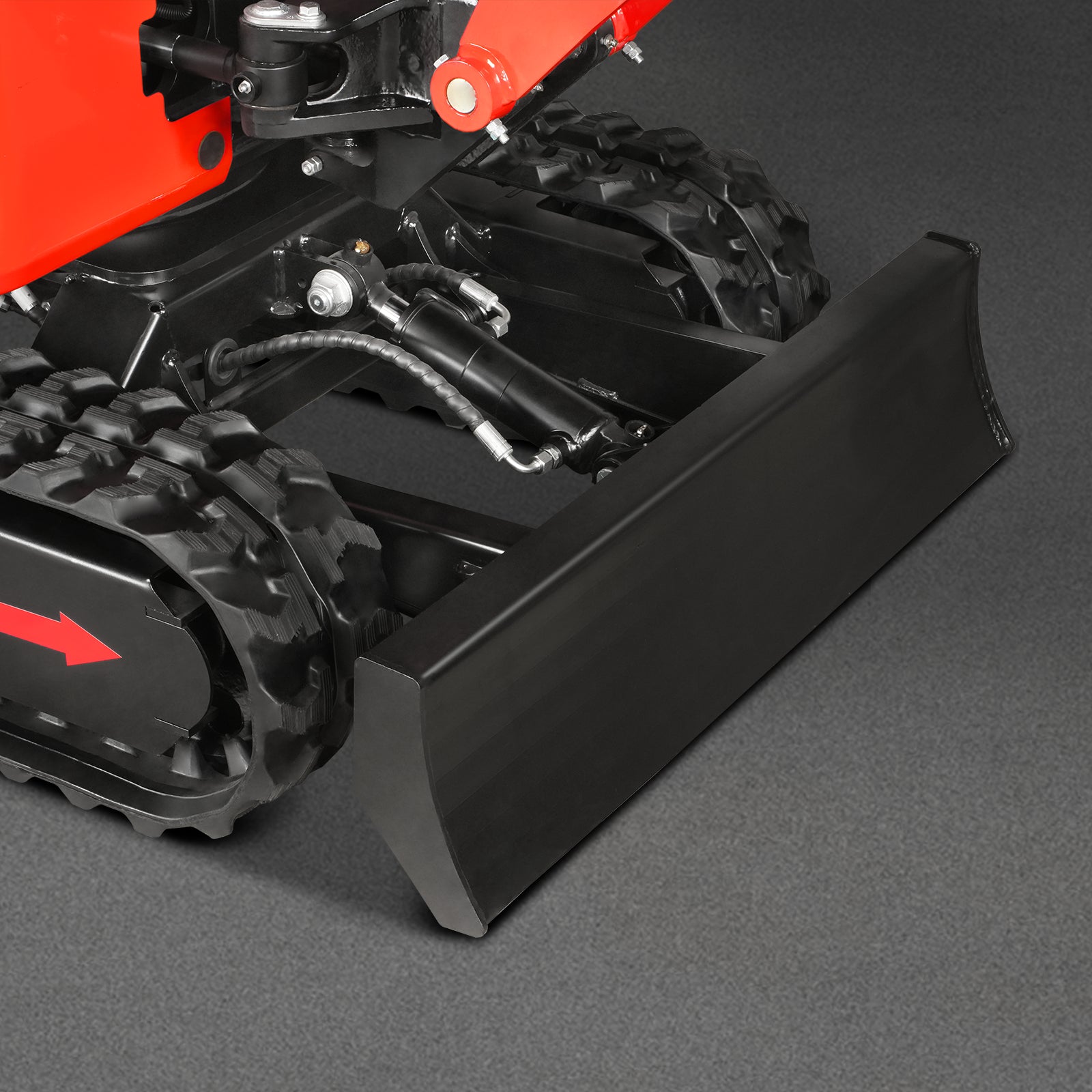

Max. Lifting Height (Dozer Blade)
5.9 in
Max. Depth (Dozer Blade)
7.4 in
Wheel Track
35.8 in

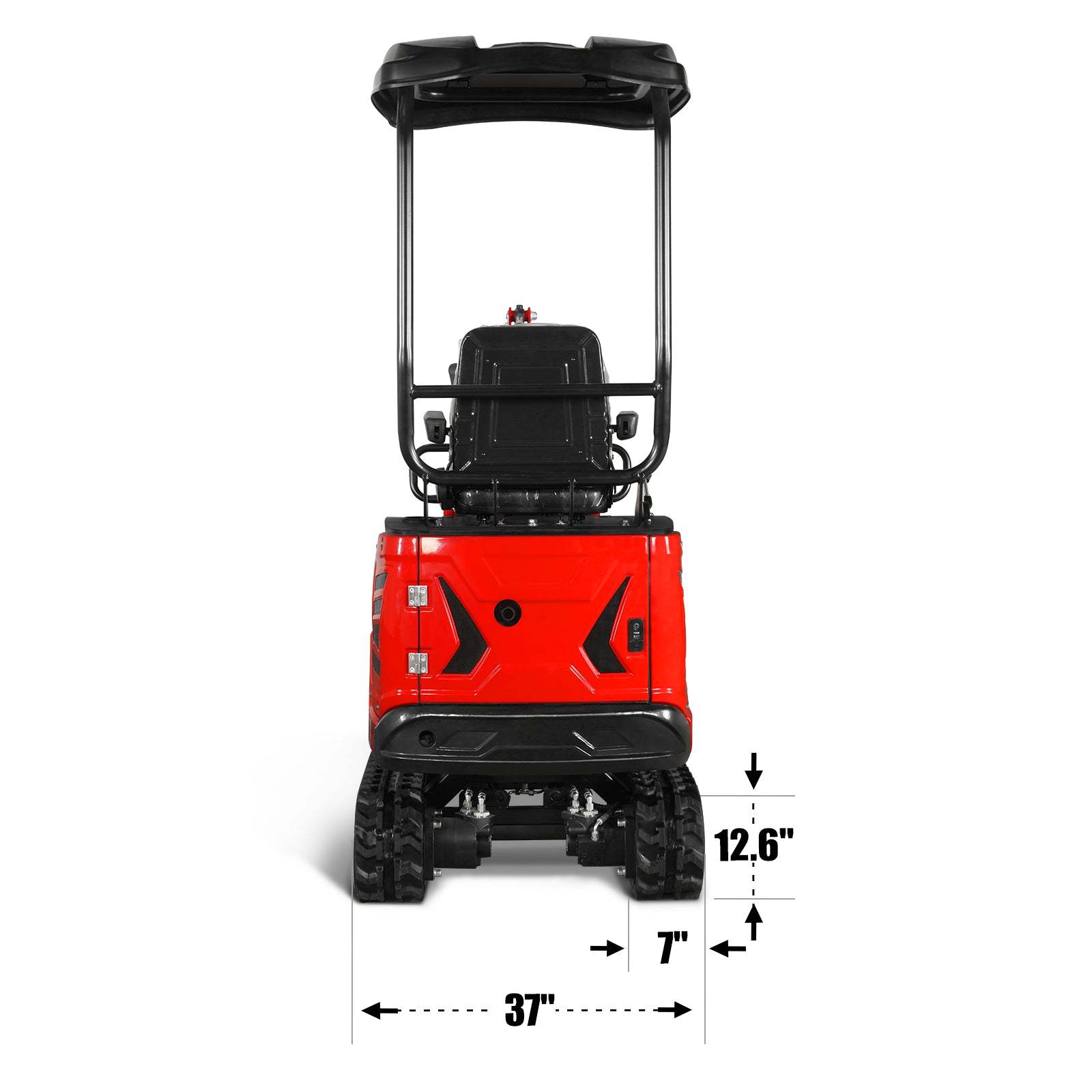

Track Height
12.6 in
Track Length
48.6 in

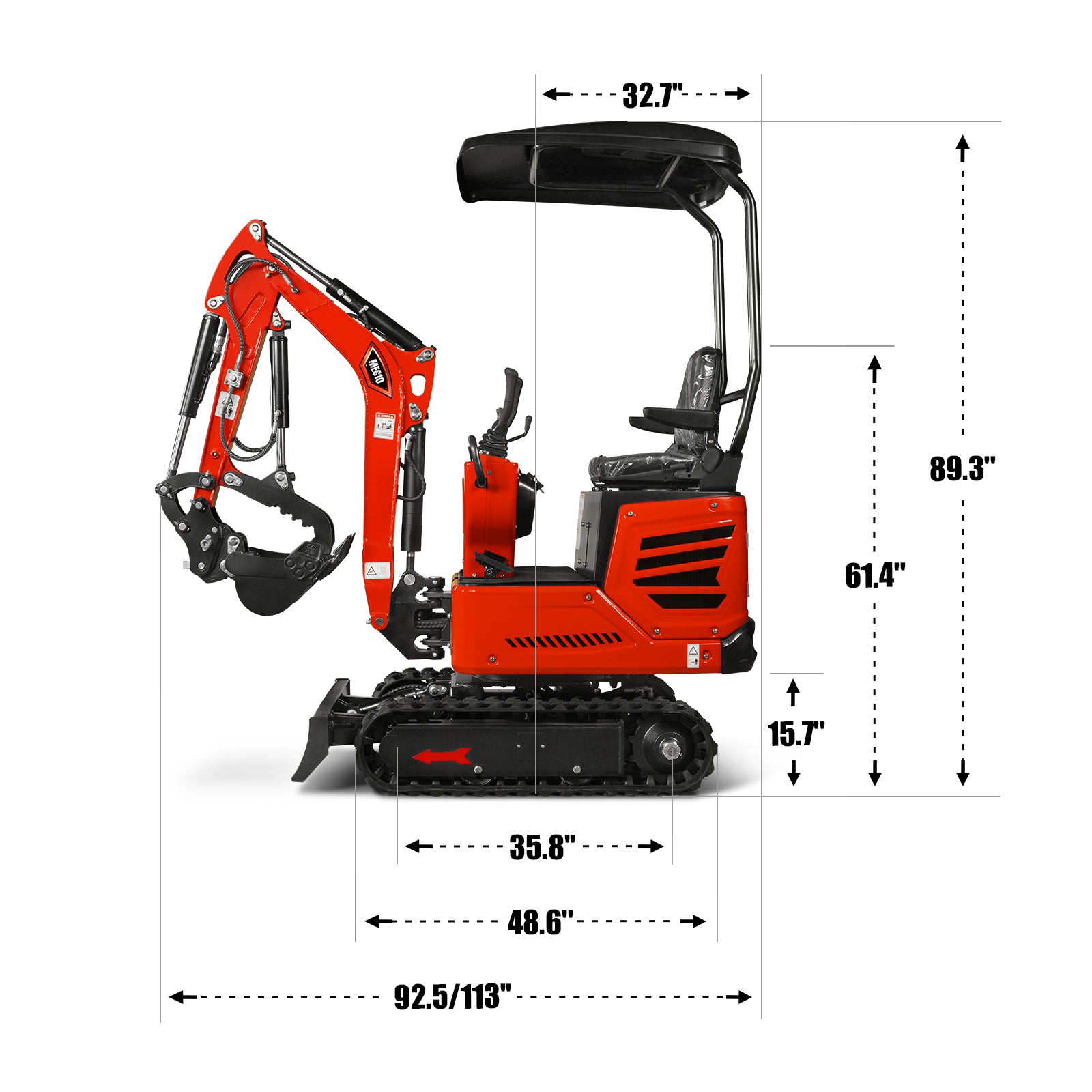

Transportation Length
92.5 / 113 in
Upper Chassis Ground Clearance
15.7 in
Height Of Seat To Ground
61.4 in
Counterweight Turning Radius
32.6 in
Overall Height
89.3 in
Chassis Width
37 in
Track Width
7 in

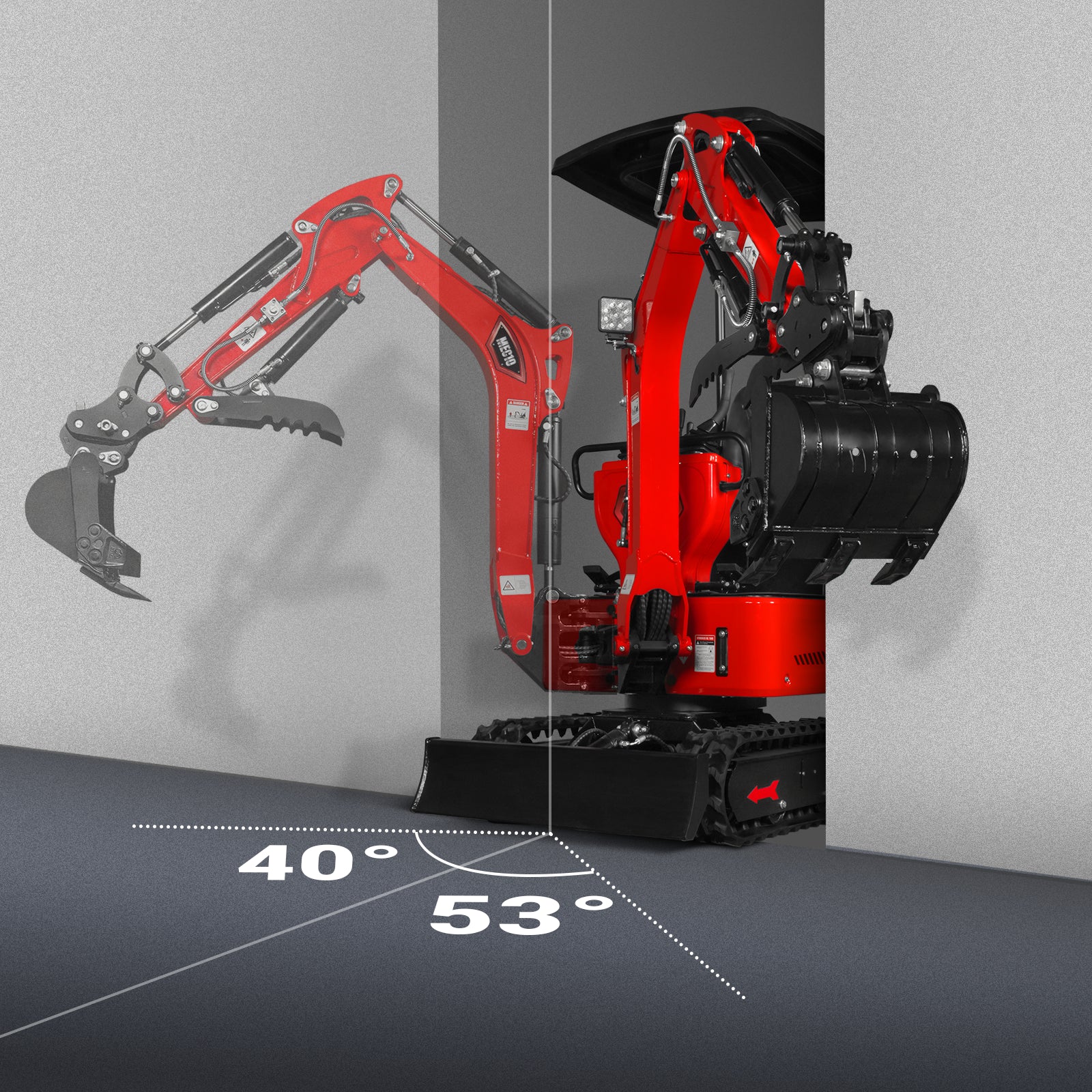

Boom Swing — Right
40°
Boom Swing — Left
53°
Model
Honda GX390
Displacement
389 cc; 11.7 HP
Engine Type
4-stroke, overhead valve, single cylinder
Start Type
Electric start
Rated Power
8.7 kW / 3600 RPM
Max. Net Torque
26.5 N·m / 2500 RPM
Fuel Tank Capacity
1.6 gal
Engine Oil Capacity
0.3 gal
Engine Oil Type
10W-30
Warranty
1 Year

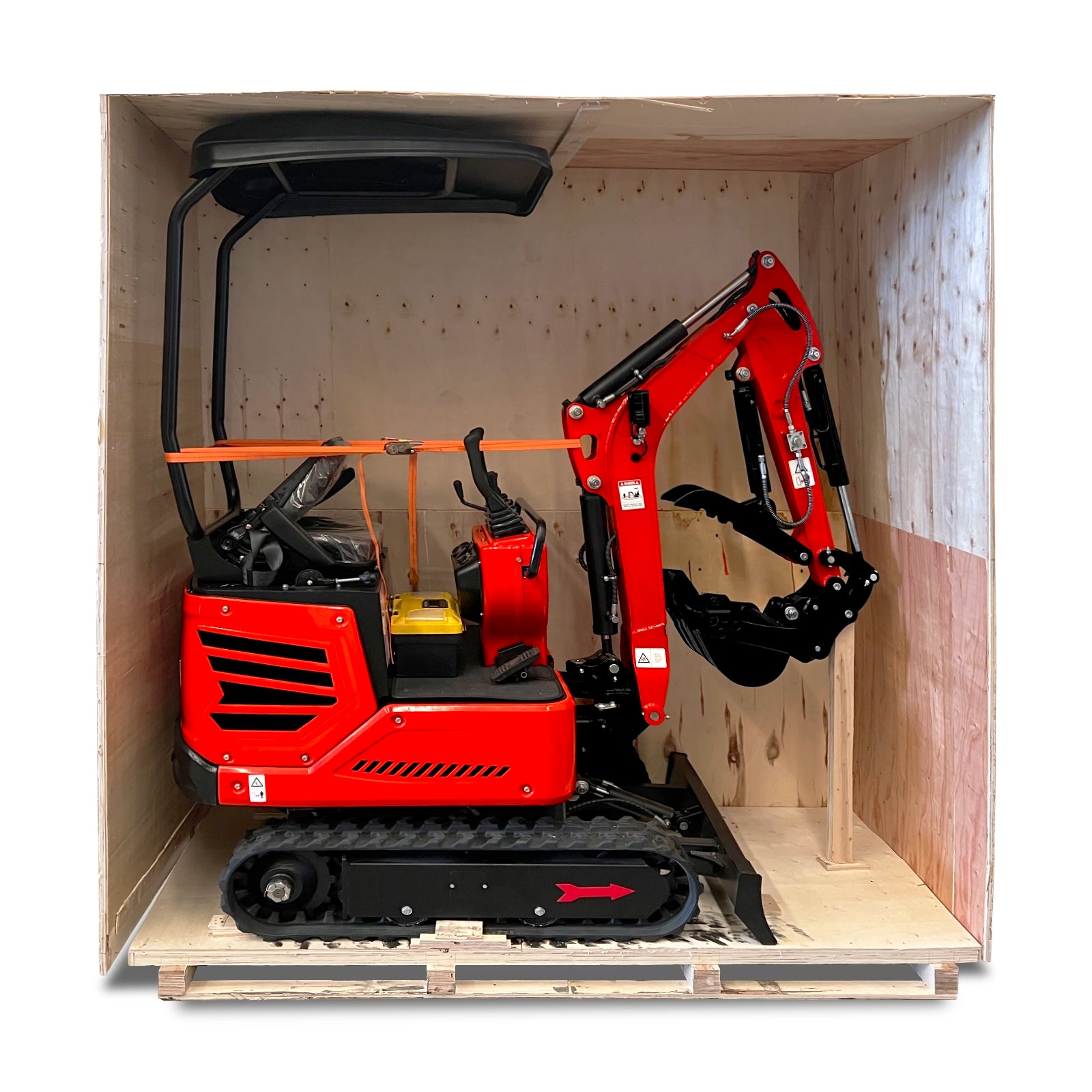

Package Method
Plywood Case
Weight (N.W. / G.W.)
2100 / 2376 lb
Dimensions
91 × 40 × 98 in
WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped), lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
